X1146

Tesla Part Number
1079658-00-A
Connector
KUM PH845-07010
Color
WT

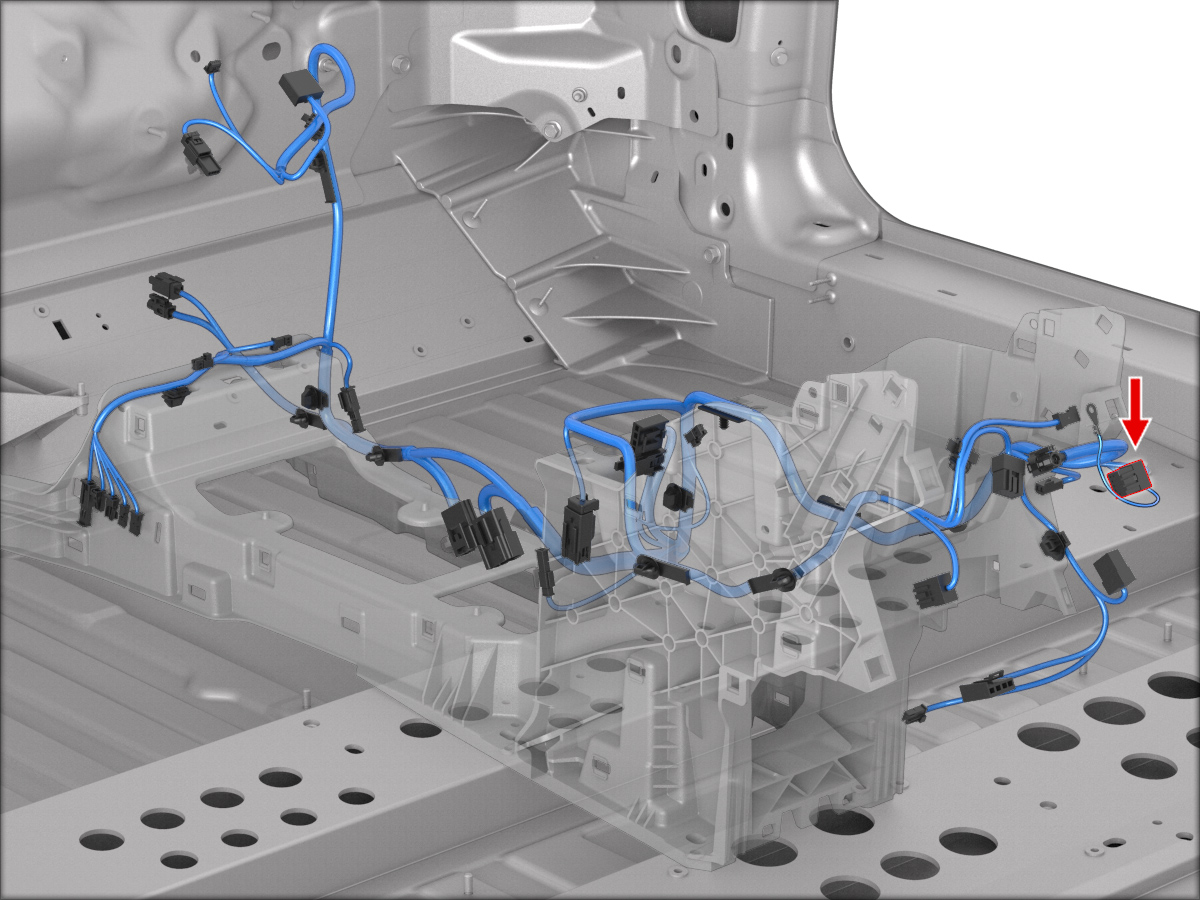

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1unused
2unused
3KUMMT095-290800.5x0.5FVT0.35X983M13
4KUMMT095-290800.5x0.5FRD0.35
5KUMMT095-290800.5x0.5FWH0.35X983M17
6KUMMT095-290800.5x0.5FBN0.35
7KUMMT095-290800.5x0.5FYE0.35X983M14
