X168

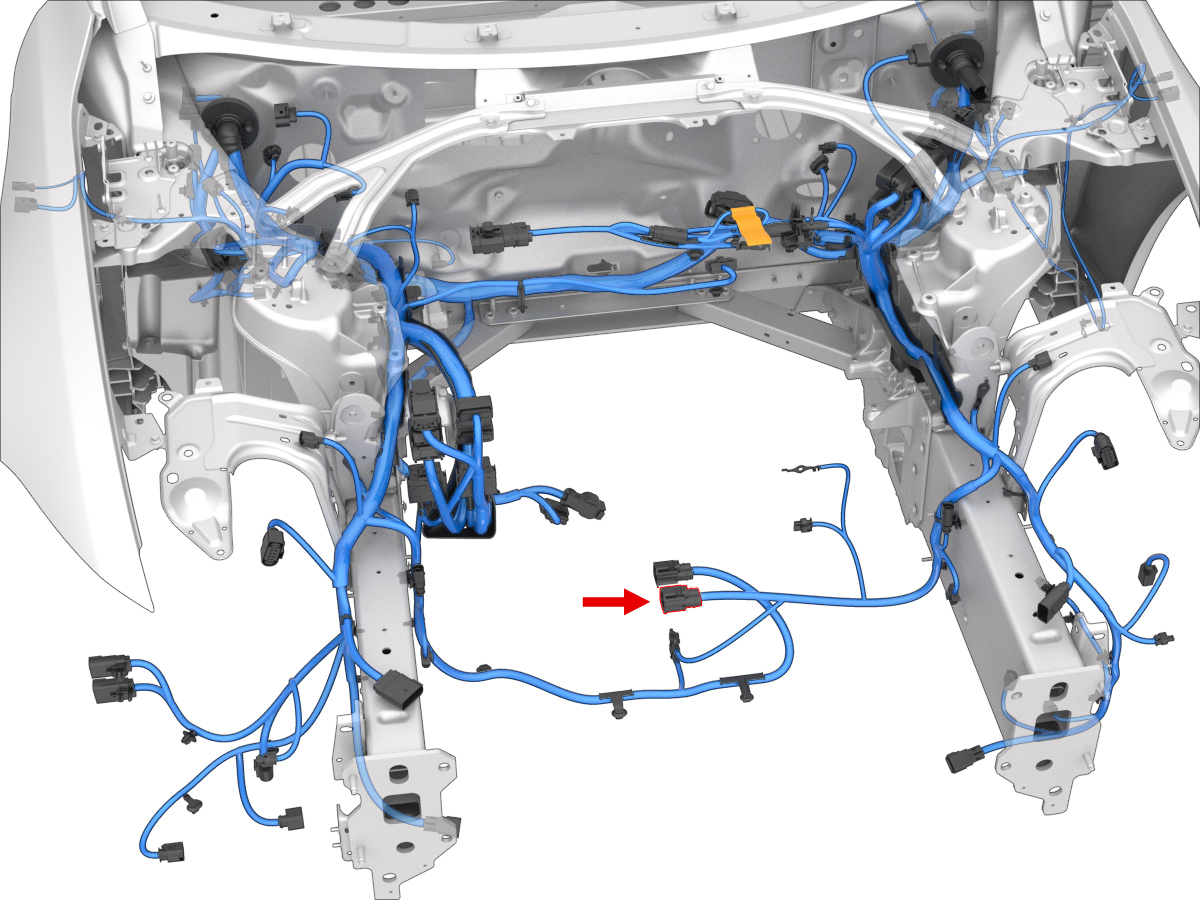

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | YAZAKI | 7116-5625-06 | 9.5x1.2FS | RD/BK | 16 | YAZAKI | 7158-3672-50 | X026 | 1 |
| 2 | YAZAKI | 7116-5625-06 | 9.5x1.2FS | BK | 16 | YAZAKI | 7158-3672-50 | G625 | 1 |
