X177

Tesla Part Number

1095225-00-A

Connector

AMP 2040487-1

Color

WH

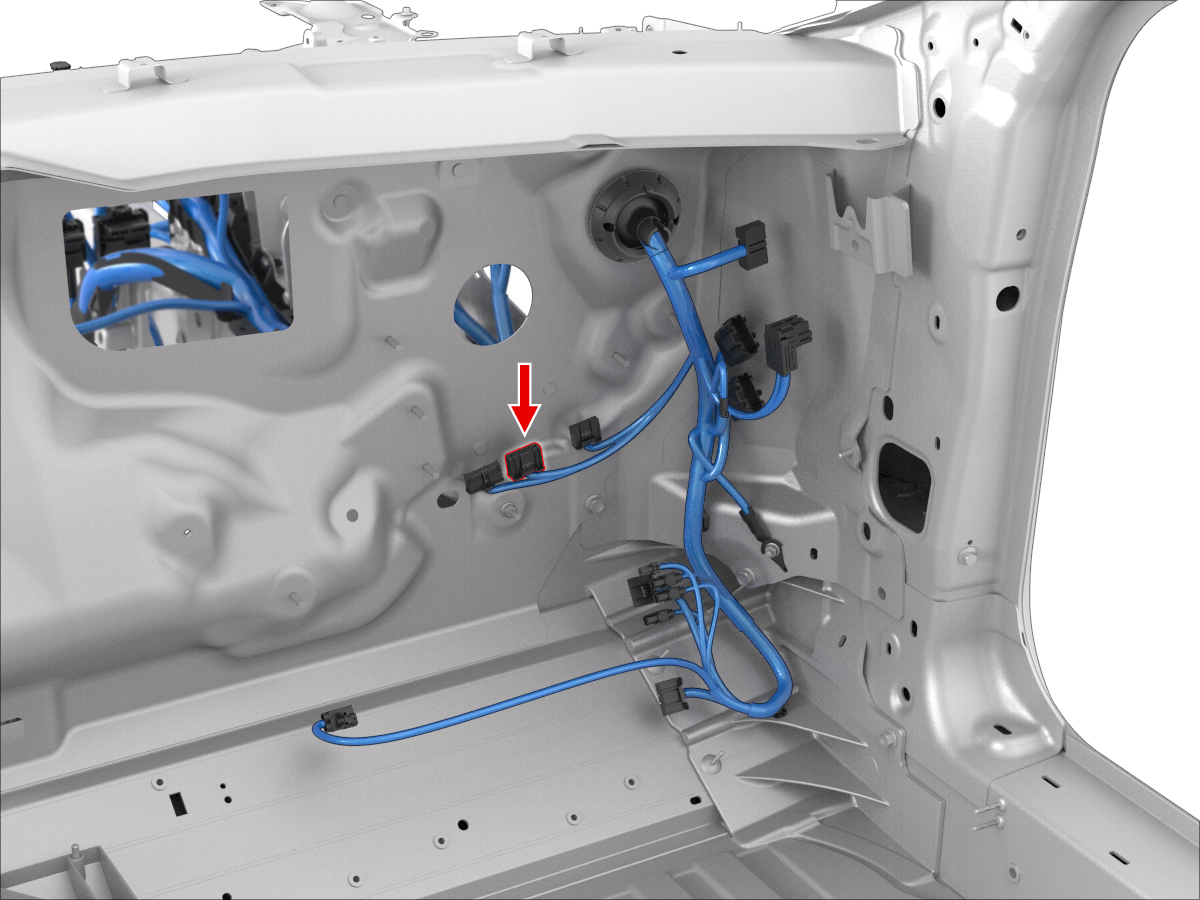

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	AMP	1981341-2	2.3x0.6F	BK	2.00			G510	13
2	unused
3	unused
4	AMP	1674311-1	0.64F	BN	0.35			X191	2
5	AMP	1674311-1	0.64F	YE	0.35			X189	6
6	AMP	1674311-1	0.64F	BN	0.35			X189	5
7	unused
8	unused
9	unused
10	unused
11	AMP	1981341-2	2.3x0.6F	BU	2.00			X011	4
12	unused
13	unused
14	AMP	1674311-1	0.64F	WH	0.35			X191	3
15	AMP	1674311-1	0.64F	VT	0.35			X191	1
16	AMP	1674311-1	0.64F	TN	0.35			X189	2
17	AMP	1674311-1	0.64F	GN	0.35			X189	3
18	AMP	1674311-1	0.64F	RD	0.35			X189	1
19	AMP	1674311-1	0.64F	BU	0.35			X189	8
20	AMP	1674311-1	0.64F	VT	0.35			X189	4
