X214

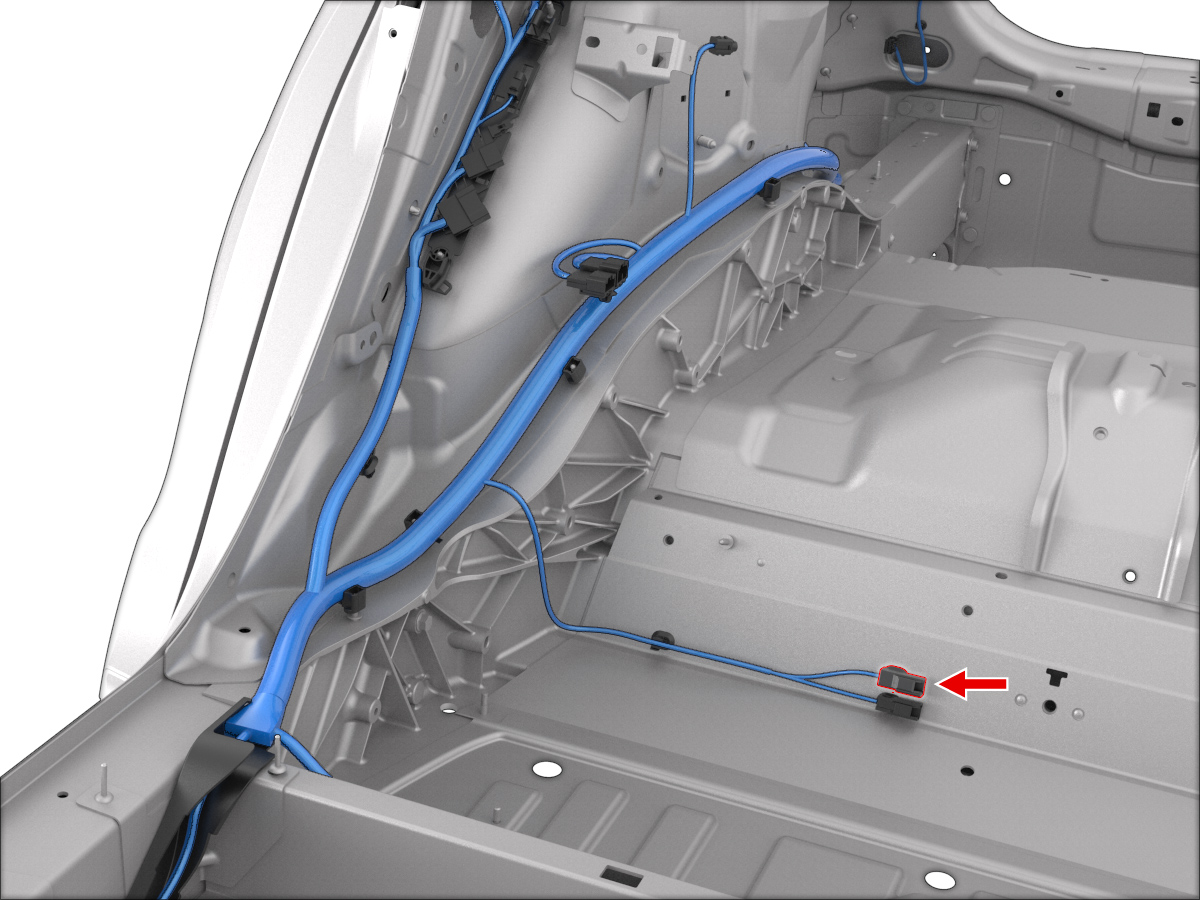

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | YAZAKI | 7114-4100-02 | 1.5x0.8M | GY | 0.35 | X060A | 6 | ||
| 2 | YAZAKI | 7114-4100-02 | 1.5x0.8M | BN | 0.35 |
