X261

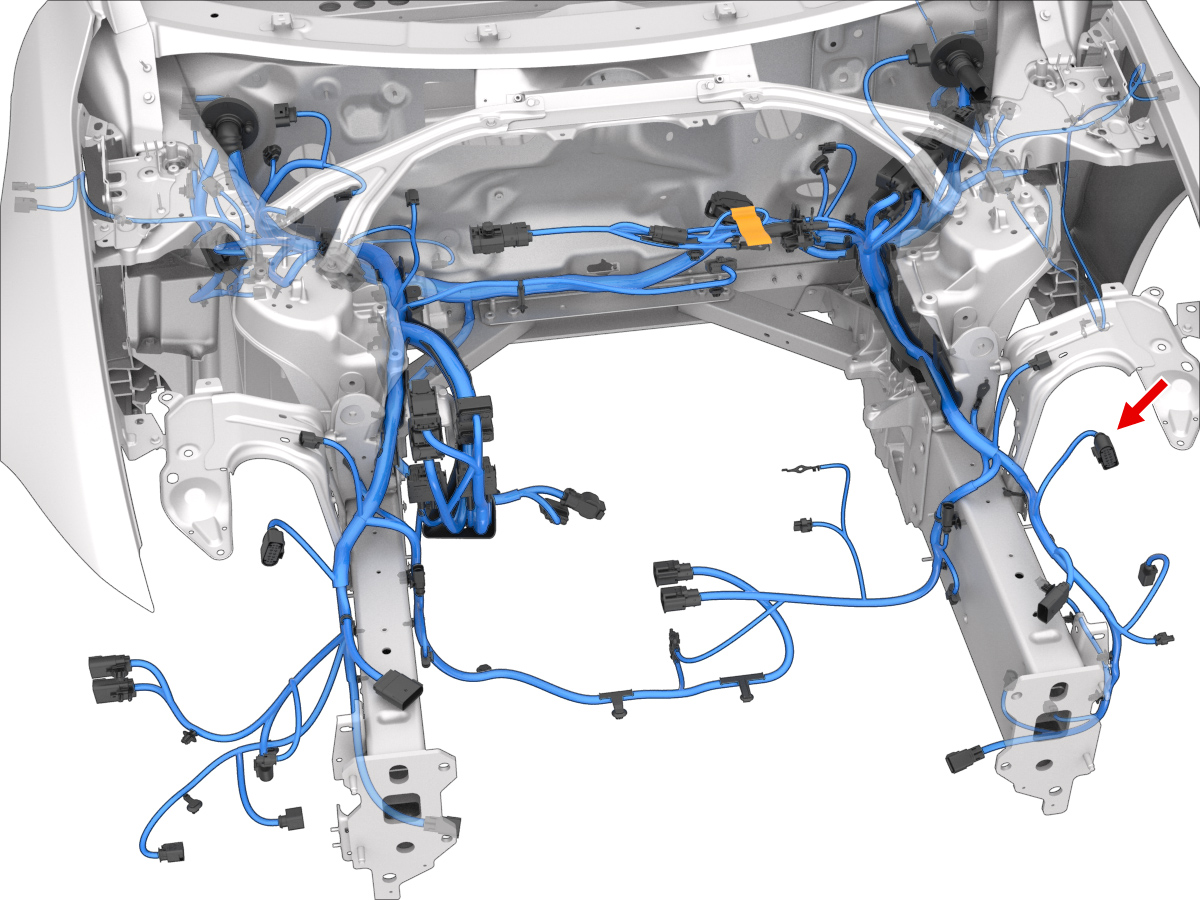

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 969005-2 | 1.6x0.6FS | WH | 0.35 | AMP | 1394133-1 | X025 | J3 |
| 2 | unused | ||||||||
| 3 | unused | ||||||||
| 4 | AMP | 969005-2 | 1.6x0.6FS | BU | 0.35 | AMP | 1394133-1 | X025 | E5 |
| 5 | unused | ||||||||
| 6 | AMP | 964273-2 | 2.8x0.8FS | RD | 1.50 | AMP | 963293-1 | X025 | A1 |
| 7 | unused | ||||||||
| 8 | unused | ||||||||
| 9 | AMP | 964273-2 | 2.8x0.8FS | BK | 1.50 | AMP | 963293-1 | G500 | 5 |
| 10 | unused | ||||||||
| 11 | unused | ||||||||
| 12 | unused | ||||||||
| 13 | unused | ||||||||
| 14 | unused | ||||||||
