X309

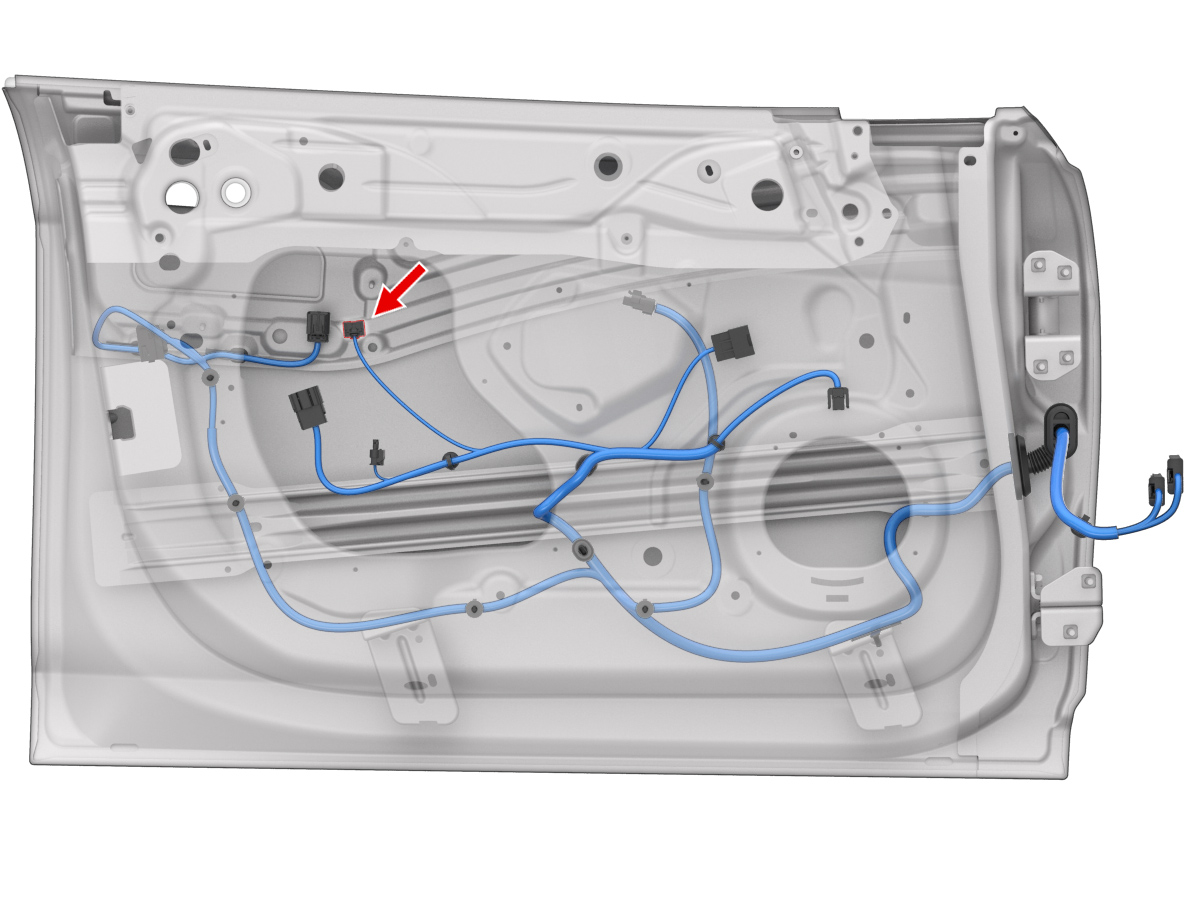

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | MOLEX | 560023-0448 | 0.50x0.4F | YE | 0.35 | X310A | 1 | ||
| 2 | MOLEX | 560023-0448 | 0.50x0.4F | BN | 0.35 | X310A | 2 | ||
| 3 | MOLEX | 560023-0448 | 0.50x0.4F | BU | 0.35 | X033B | 18 | ||
| 4 | MOLEX | 560023-0448 | 0.50x0.4F | GY | 0.35 | X033B | 7 | ||
| 5 | MOLEX | 560023-0448 | 0.50x0.4F | WH | 0.35 | X310A | 6 | ||
| 6 | MOLEX | 560023-0448 | 0.50x0.4F | RD | 0.35 | X310A | 5 | ||
| 7 | MOLEX | 560023-0448 | 0.50x0.4F | GY | 0.35 | X310A | 4 | ||
| 8 | MOLEX | 560023-0448 | 0.50x0.4F | GN | 0.35 | X310A | 3 | ||
| 9 | unused | ||||||||
| 10 | unused | ||||||||
| 11 | MOLEX | 560023-0448 | 0.50x0.4F | YE | 0.35 | X033B | 1 | ||
| 12 | MOLEX | 560023-0448 | 0.50x0.4F | BN | 0.35 | ||||
