X362

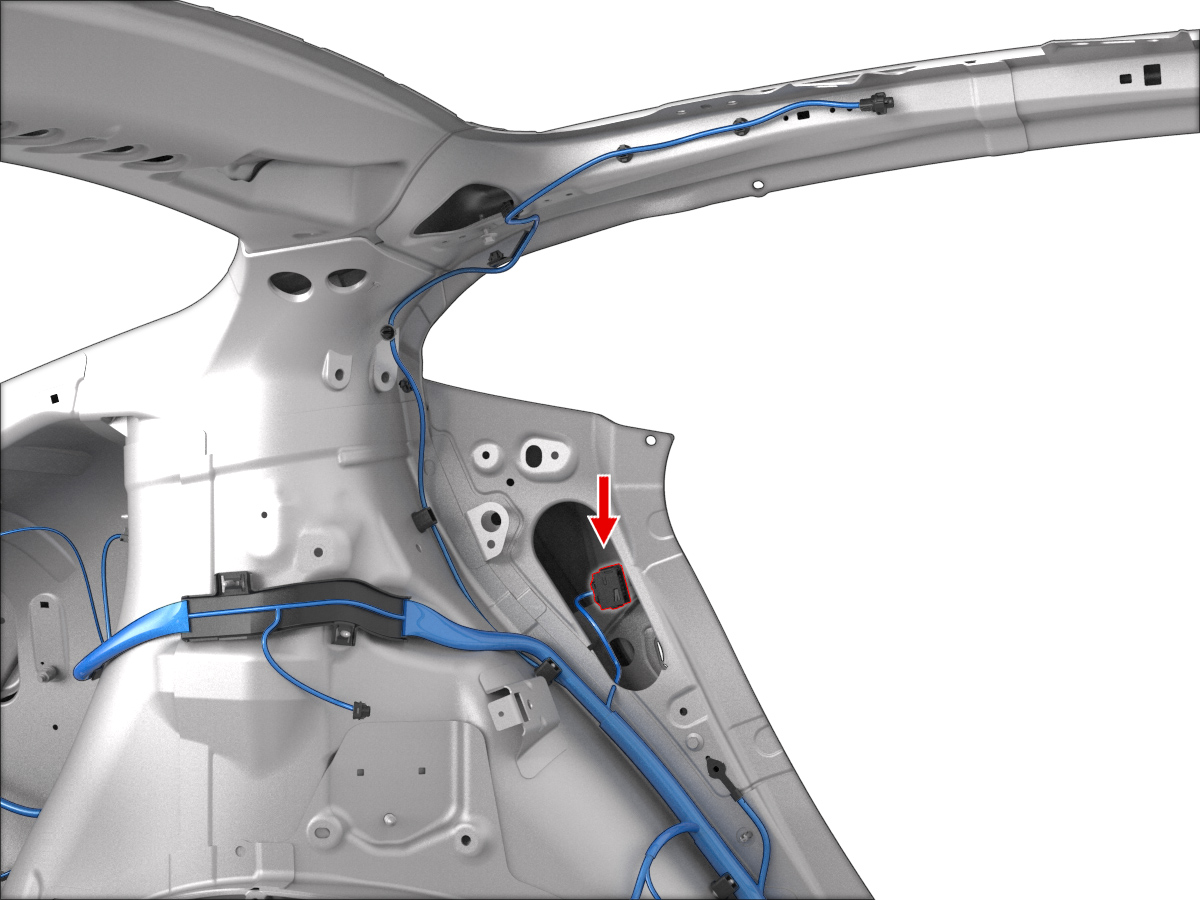

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | unused | ||||||||
| 2 | unused | ||||||||
| 3 | AMP | 969005-3 | 1.6x0.6FS | GN | 0.50 | AMP | 1394133-1 | X039 | 26 |
| 4 | AMP | 969005-3 | 1.6x0.6FS | WH | 0.50 | AMP | 1394133-1 | X039 | 14 |
| 5 | unused | ||||||||
| 6 | AMP | 969005-3 | 1.6x0.6FS | GY | 0.35 | AMP | 1394133-1 | X032 | 11 |
| 7 | AMP | 969005-3 | 1.6x0.6FS | YE | 0.35 | AMP | 1394133-1 | X032 | 30 |
| 8 | AMP | 969005-3 | 1.6x0.6FS | BN | 0.35 | AMP | 1394133-1 | X032 | 33 |
| 9 | unused | ||||||||
| 10 | unused | ||||||||
