X387

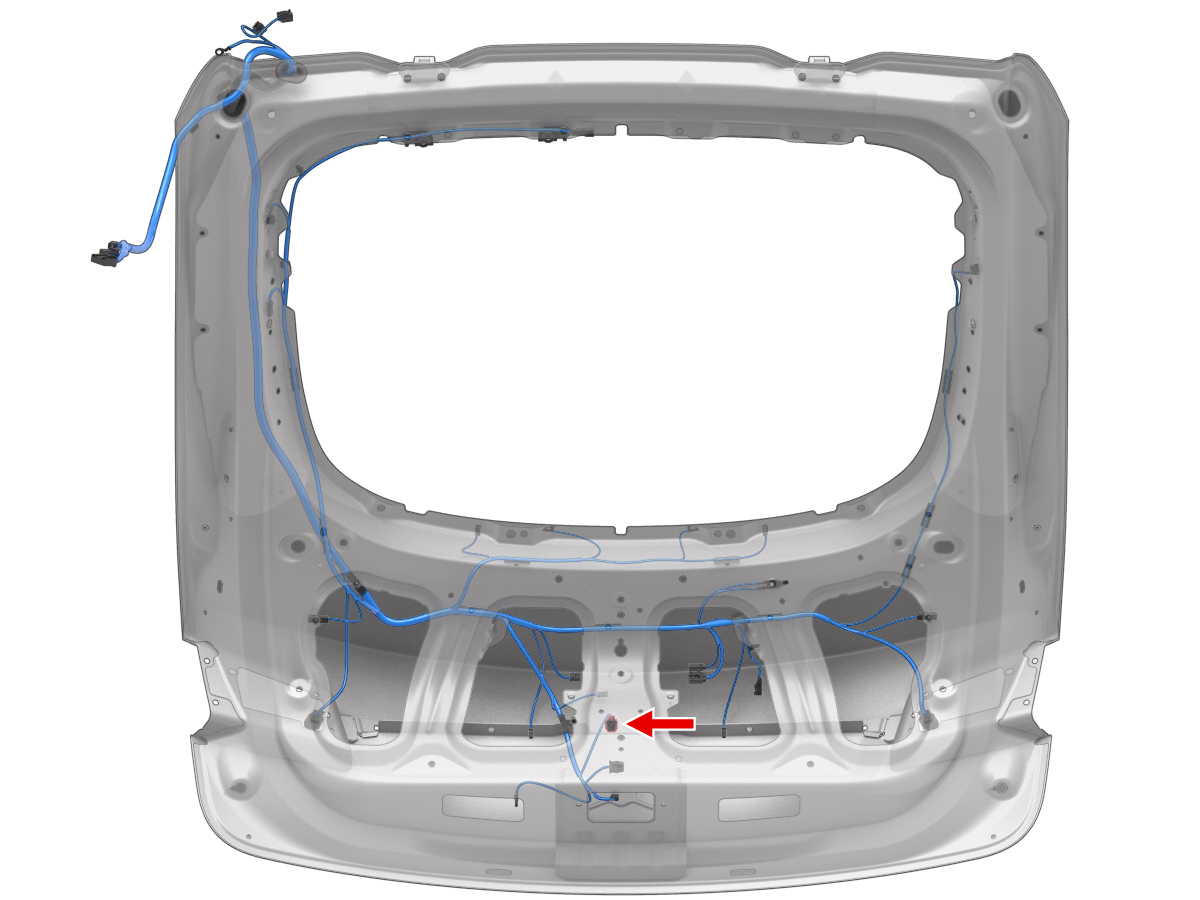

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 5-962885-5 | 0.63x0.63FS | GY | 0.35 | AMP | 967067-2 | X921F | 8 |
| 2 | AMP | 5-962885-5 | 0.63x0.63FS | BK | 0.35 | AMP | 967067-2 |
