X411

Tesla Part Number
1015087-00-A
Connector
AMP 365058-3
Color
BK

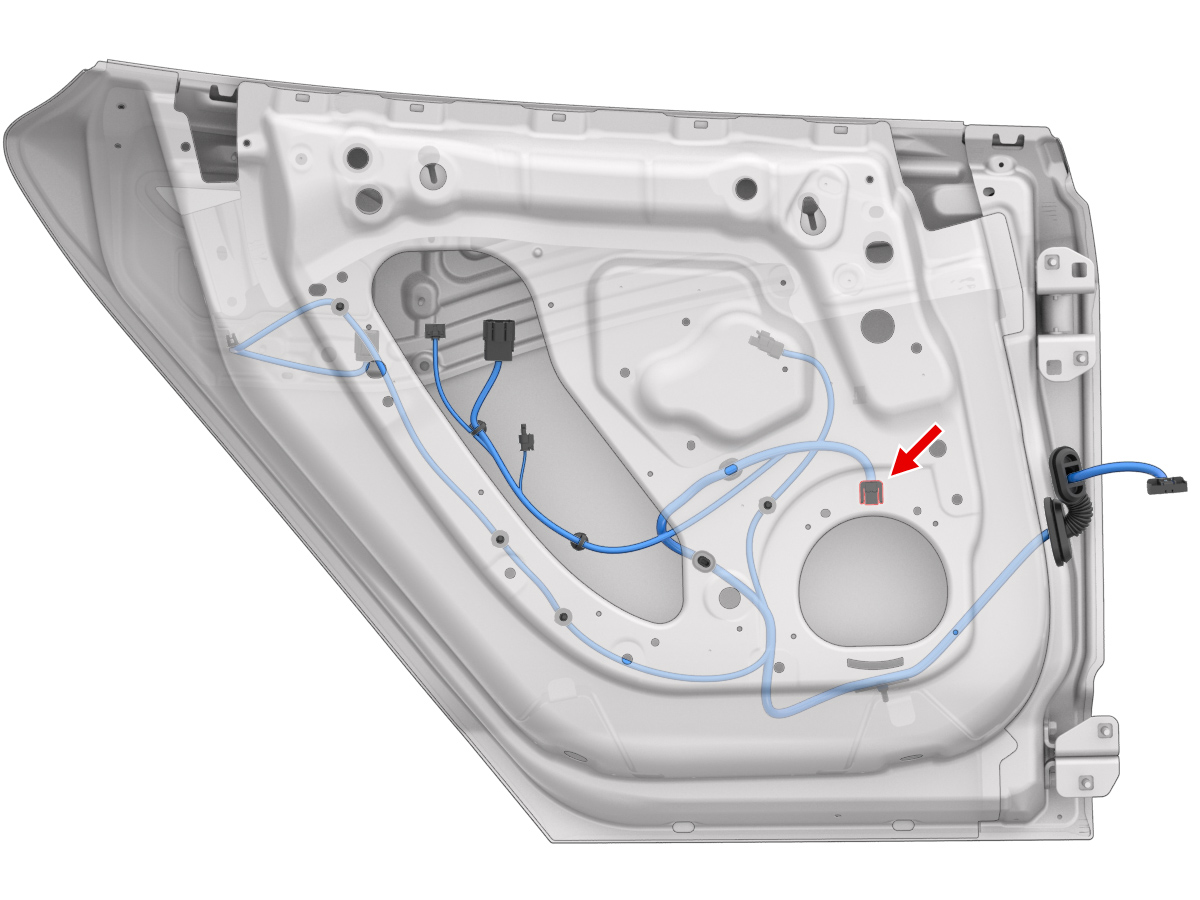

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1AMP927768-12.8x0.8FGN1.50
2AMP927768-12.8x0.8FBN1.50
