X418

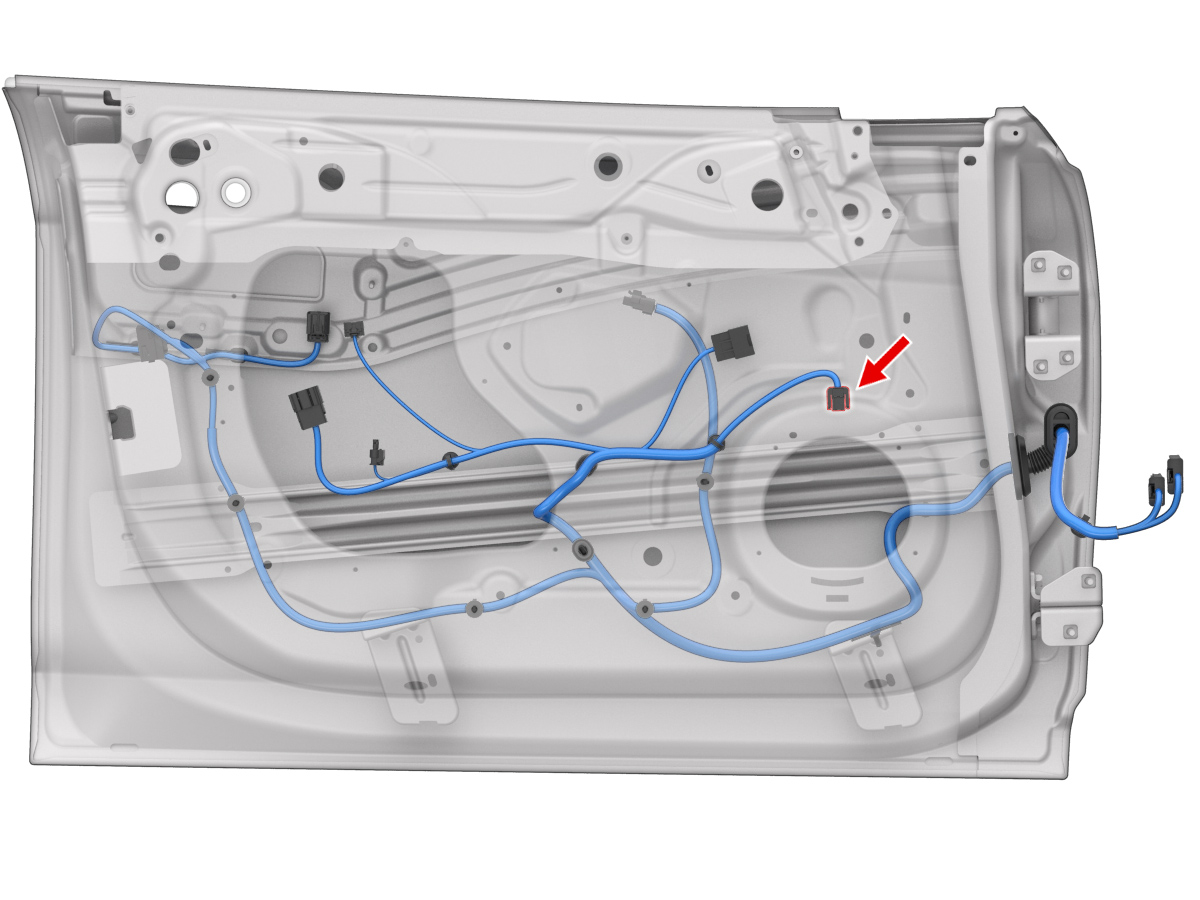

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 927768-1 | 2.8x0.8F | VT | 1.50 | X033B | 11 | ||
| 2 | AMP | 927768-1 | 2.8x0.8F | BN | 1.50 | X033B | 20 |
