X450

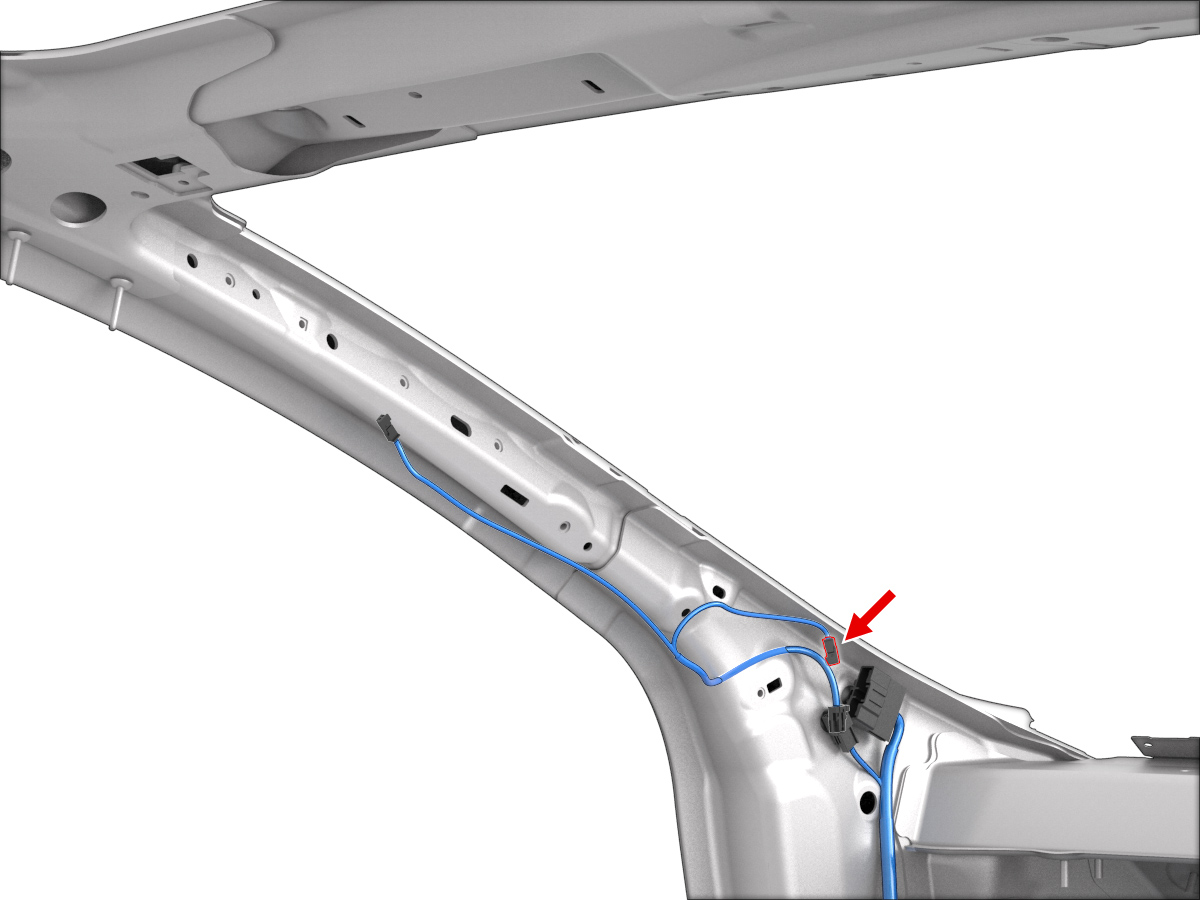

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 5-963715-1 | 0.63x0.63F | GN | 0.50 | X972F | 1 | ||
| 2 | AMP | 5-963715-1 | 0.63x0.63F | GY | 0.50 | X972F | 2 |
