X454

Tesla Part Number

1660467-00-A

Connector

HIROSE GT25-16DS-HU

Color

BK

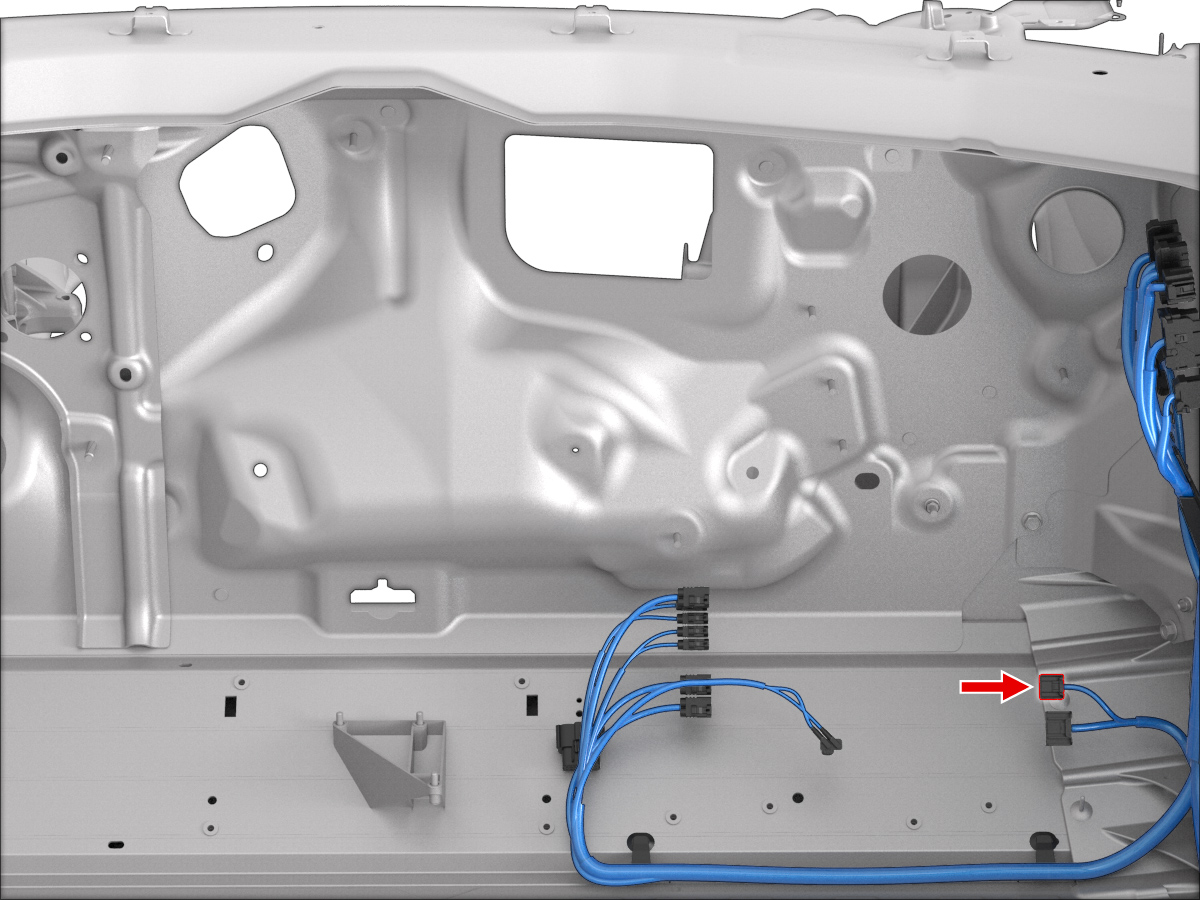

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	HIROSE	GT25H-2024SCF	0.64F	WH	0.35			X910F_1	2
2	HIROSE	GT25H-2024SCF	0.64F	RD	0.35			X910F_1	1
3	HIROSE	GT25H-2024SCF	0.64F	GN	0.50			X973M	4
4	HIROSE	GT25H-2024SCF	0.64F	BU	0.50			X973M	3
5	HIROSE	GT25H-2024SCF	0.64F	YE/WH	0.35			X052	2
6	HIROSE	GT25H-2024SCF	0.64F	YE	0.35			X052	17
7	HIROSE	GT25H-2024SCF	0.64F	RD	0.50			X986F	9
8	HIROSE	GT25H-2024SCF	0.64F	BK	0.50			X986F	10
9	HIROSE	GT25H-2024SCF	0.64F	YE	0.50			X051	13
10	HIROSE	GT25H-2024SCF	0.64F	VT	0.50			X051	14
11	HIROSE	GT25H-2024SCF	0.64F	GY	0.35			X922M	2
12	HIROSE	GT25H-2024SCF	0.64F	WH	0.35			X922M	3
13	HIROSE	GT25H-2024SCF	0.64F	BN	0.50			X051	30
14	HIROSE	GT25H-2024SCF	0.64F	BU	0.50			X051	29
15	HIROSE	GT25H-2024SCF	0.64F	WH	0.35			X986F	4
16	HIROSE	GT25H-2024SCF	0.64F	VT	0.35			X986F	3
