X455

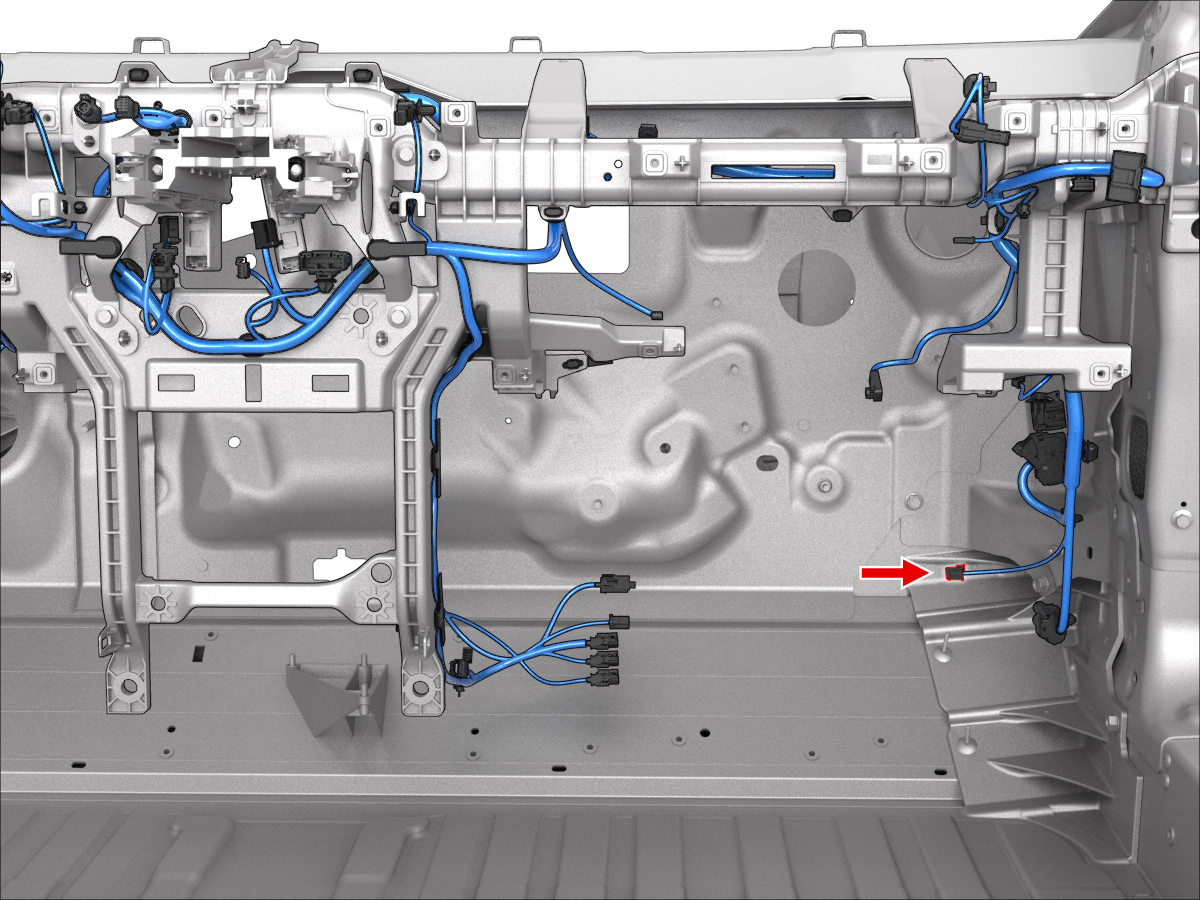

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMPHENOL | 10141272-111 LF | 0.50F | YE | 0.35 | X977M | 15 | ||
| 2 | unused | ||||||||
| 3 | AMPHENOL | 10141272-111 LF | 0.50F | VT | 0.35 | X954M | 16 | ||
| 4 | unused | ||||||||
