X671

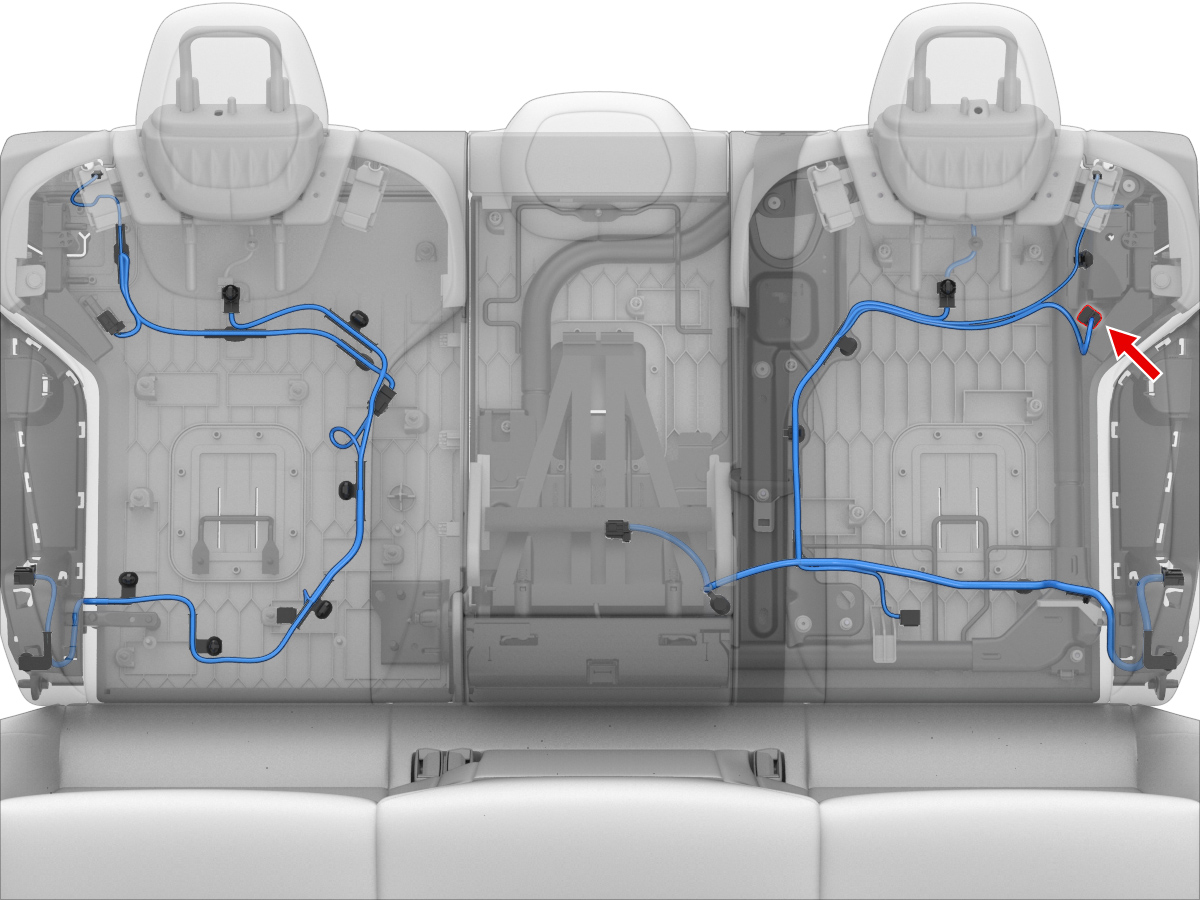

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | DELPHI | 35072403 | 1.2x0.6F | RD | 0.50 | X935F | 10 | ||
| 2 | DELPHI | 35072403 | 1.2x0.6F | GN | 0.50 | X935F | 18 | ||
| 3 | DELPHI | 35410019 | 1.2x0.6F | BN | 0.35 | ||||
| 4 | DELPHI | 35410019 | 1.2x0.6F | GY | 0.35 | X935F | 17 |
