X676

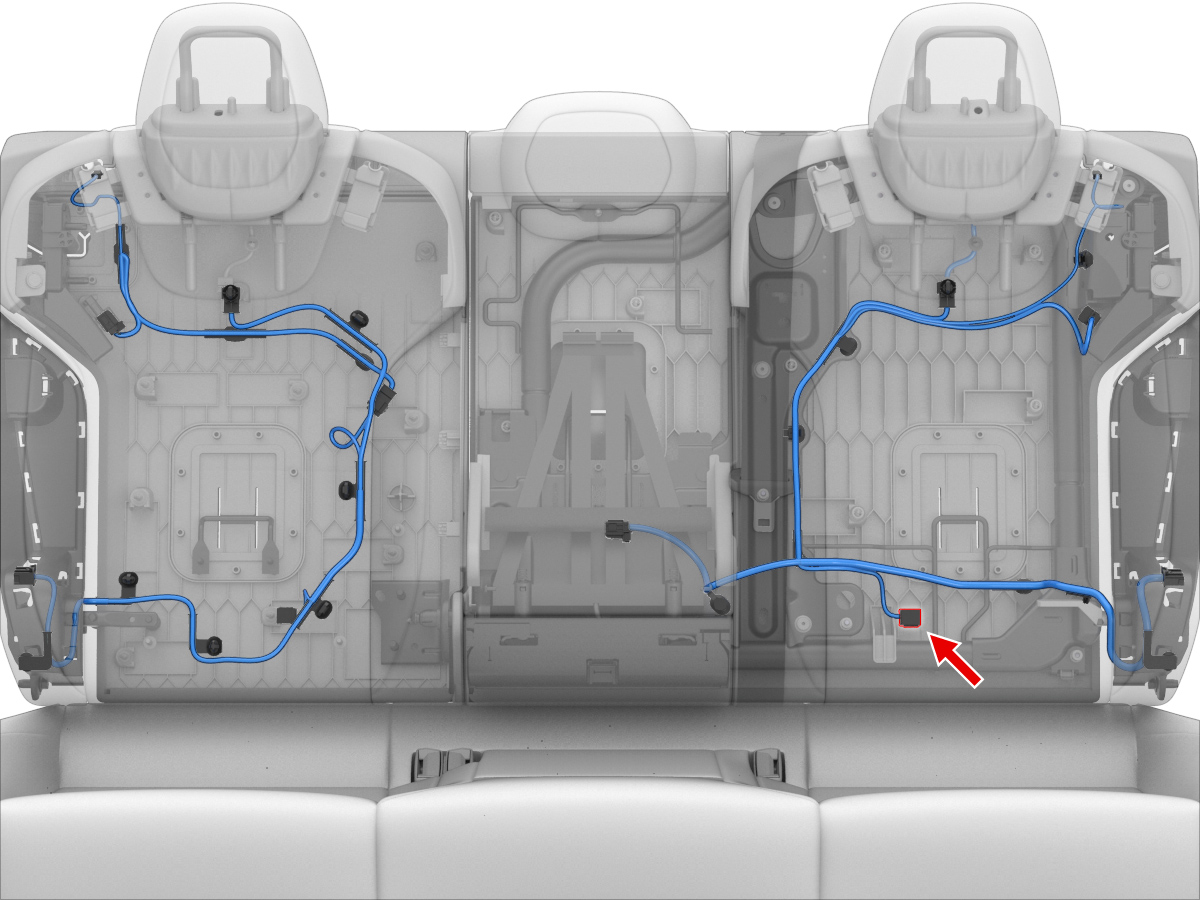

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | SUMITOMO | 8240-0215 | 1.5x0.64F | BK | 0.50 | ||||
| 2 | SUMITOMO | 8240-0215 | 1.5x0.64F | VT | 0.50 | X935F | 20 | ||
| 3 | unused | ||||||||
| 4 | unused | ||||||||
