X686

Tesla Part Number

1042592-00-A

Connector

SUMITOMO 6098-5704

Color

WH

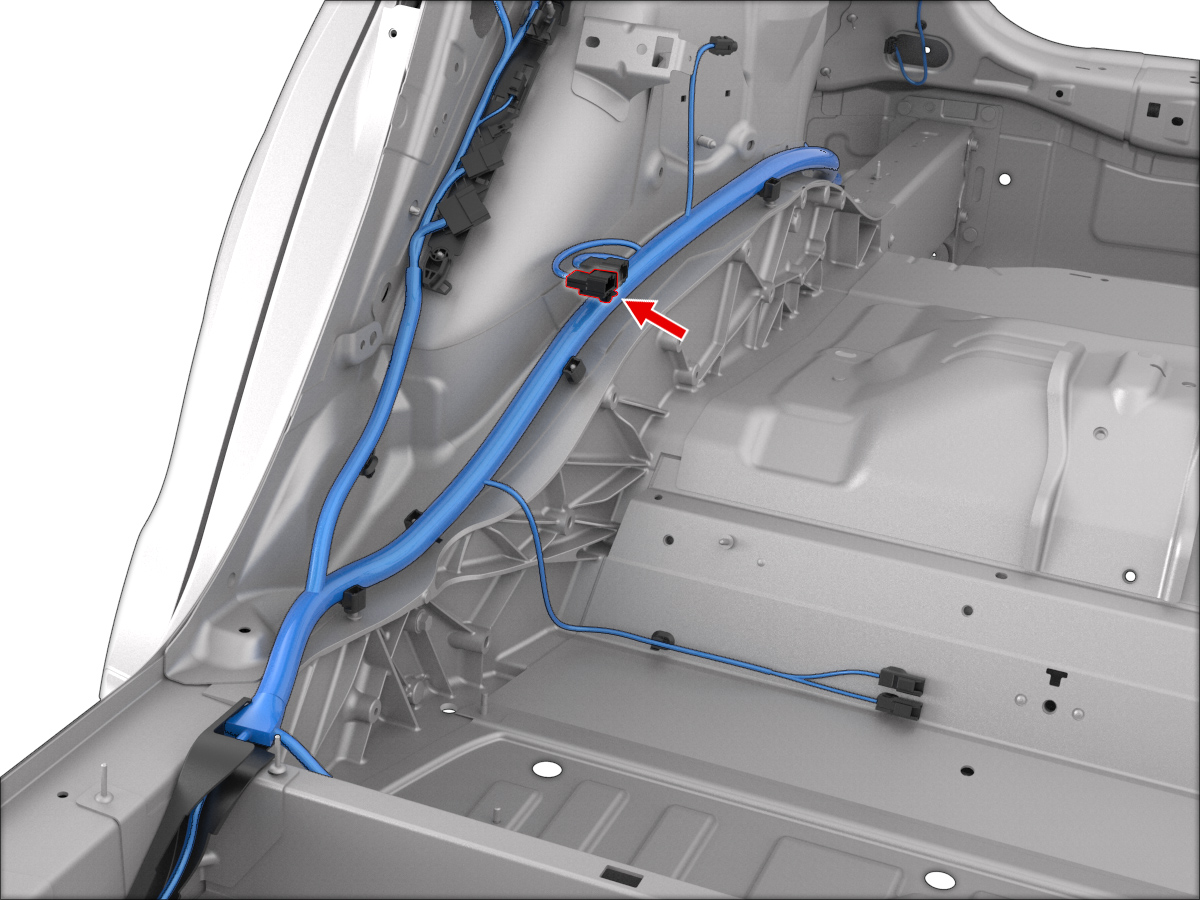

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8230-4925	1.5x0.6M	VT	0.50			X060A	28
2	SUMITOMO	8230-4925	1.5x0.6M	GY	0.50			X060A	29
3	SUMITOMO	8230-4925	1.5x0.6M	RD	0.50			X060A	31
4	unused
5	unused
6	unused
7	SUMITOMO	8230-4925	1.5x0.6M	BN	0.35			X060A	22
8	SUMITOMO	8230-4925	1.5x0.6M	WH	0.35			X060A	20
9	SUMITOMO	8230-4925	1.5x0.6M	GN	0.35			X060A	5
10	SUMITOMO	8230-4925	1.5x0.6M	BN	0.35
11	unused
12	SUMITOMO	8230-4923	1.5x0.6M	BK	1.50			G700	1
