X804

Tesla Part Number
1048705-07-A
Connector
ROSENBERGER 59Z115-000-H
Color
VT

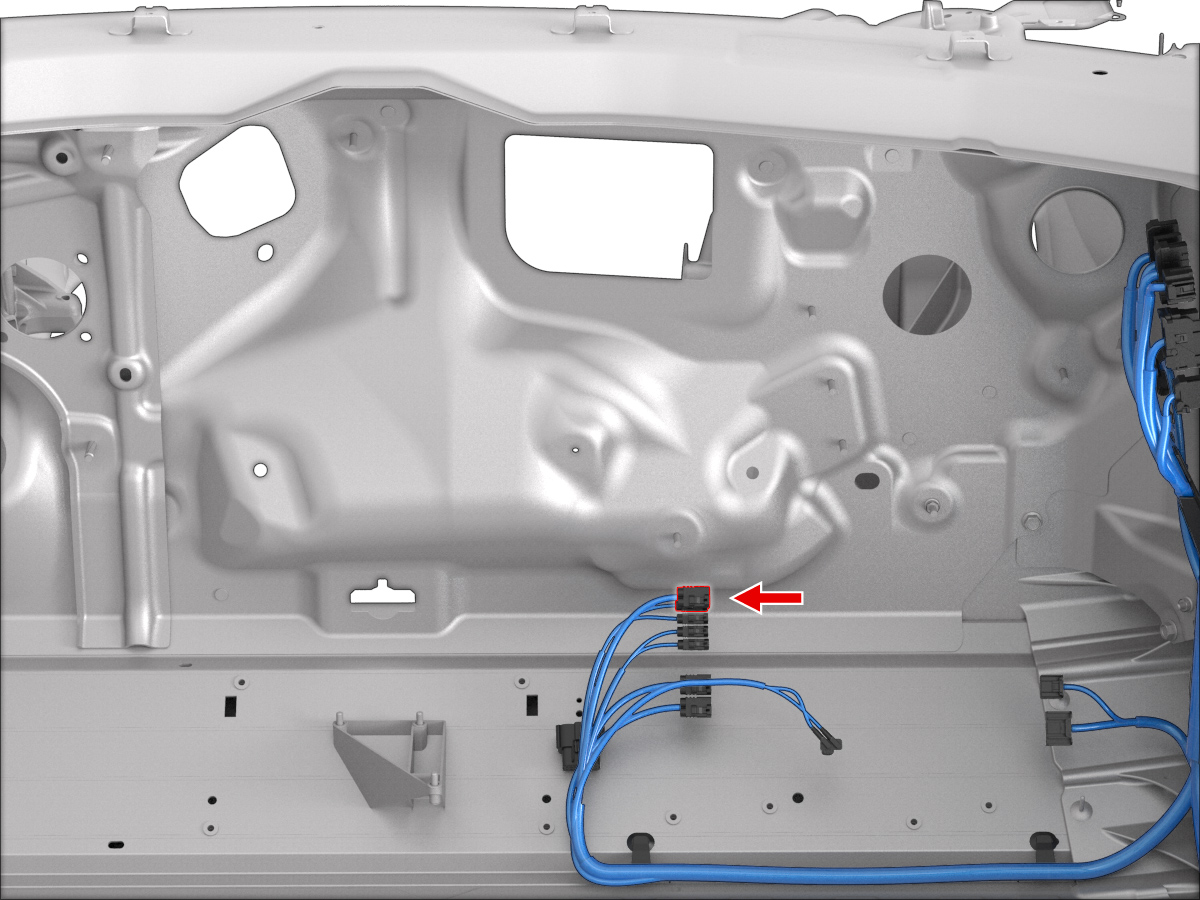

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1ROSENBERGER59K16B-1M4T4COAXFBKD302X8061
2ROSENBERGER59K16B-1M4T4COAXFBKD302X8181
