X909M

Tesla Part Number

1055685-01-A

Connector

MOLEX 33482-2102

Color

GY

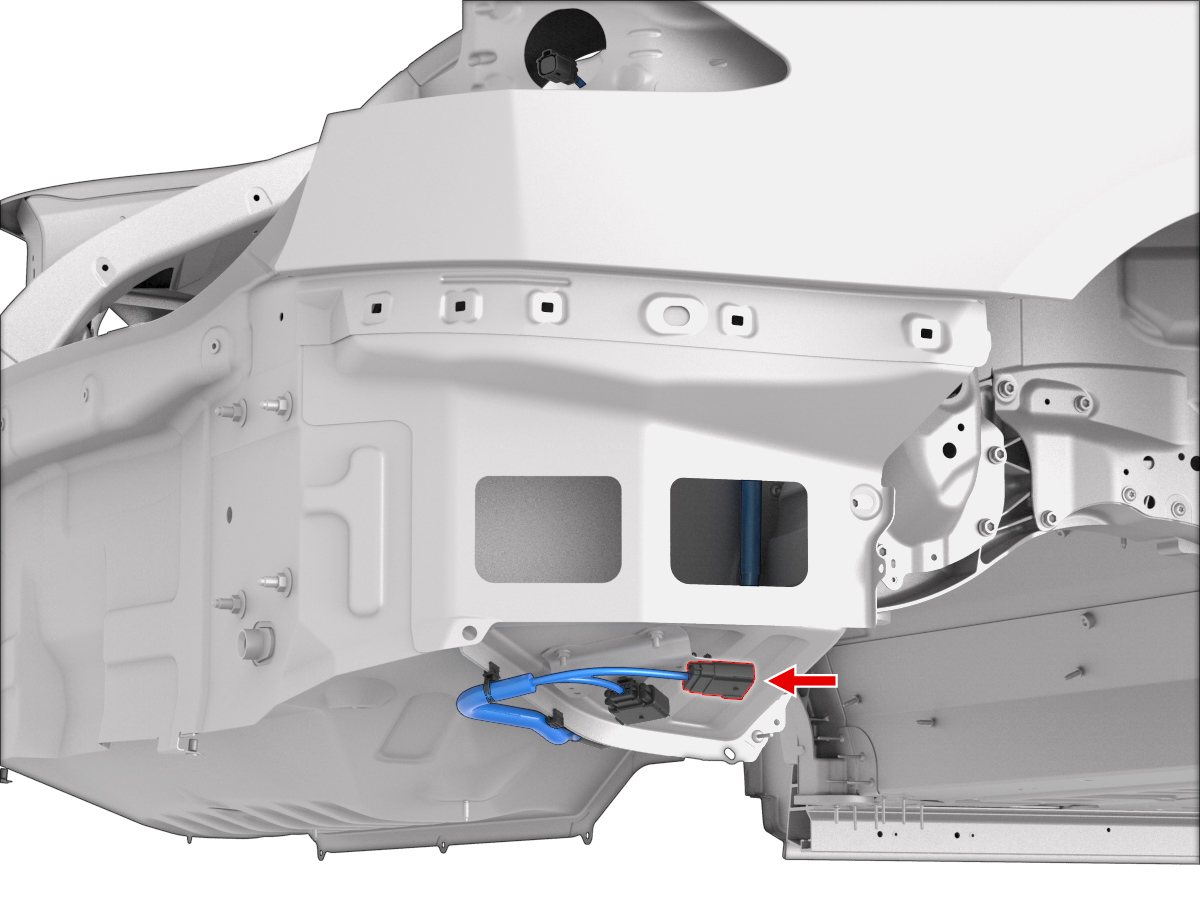

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	MOLEX	33000-0004	1.5x0.8M	BK	0.35	TESLA	MAT-120-240	G700	1
2	MOLEX	33000-0004	1.5x0.8M	GN	0.35	TESLA	MAT-120-240	X488	8
3	MOLEX	33000-0004	1.5x0.8M	GY	0.35	TESLA	MAT-120-240	X488	6
4	MOLEX	33000-0004	1.5x0.8M	VT	0.35	TESLA	MAT-120-240	X051	40
5	MOLEX	33000-0004	1.5x0.8M	RD	0.35	TESLA	MAT-120-240	X050B	2
6	MOLEX	33000-0004	1.5x0.8M	YE	0.35	TESLA	MAT-120-240	X050A	18
7	MOLEX	33000-0004	1.5x0.8M	GN	0.35	TESLA	MAT-120-240	X050A	20
8	MOLEX	33000-0004	1.5x0.8M	WH	0.35	TESLA	MAT-120-240	X050A	8
9	unused
10	unused
11	MOLEX	33000-0004	1.5x0.8M	BK	0.35	TESLA	MAT-120-240	G700	1
12	MOLEX	33000-0004	1.5x0.8M	WH	0.35	TESLA	MAT-120-240	X488	12
13	MOLEX	33000-0004	1.5x0.8M	BU	0.35	TESLA	MAT-120-240	X488	10
14	MOLEX	33000-0004	1.5x0.8M	YE	0.35	TESLA	MAT-120-240	X051	41
15	MOLEX	33000-0004	1.5x0.8M	BN	0.35	TESLA	MAT-120-240	X050B	6
16	MOLEX	33000-0004	1.5x0.8M	GY	0.35	TESLA	MAT-120-240	X050A	21
17	MOLEX	33000-0004	1.5x0.8M	BU	0.35	TESLA	MAT-120-240	X050A	16
18	MOLEX	33000-0004	1.5x0.8M	RD	0.35	TESLA	MAT-120-240	X050A	17
19	unused
20	unused
