X936M

Tesla Part Number

1042617-01-A

Connector

SUMITOMO 6098-5653

Color

BK

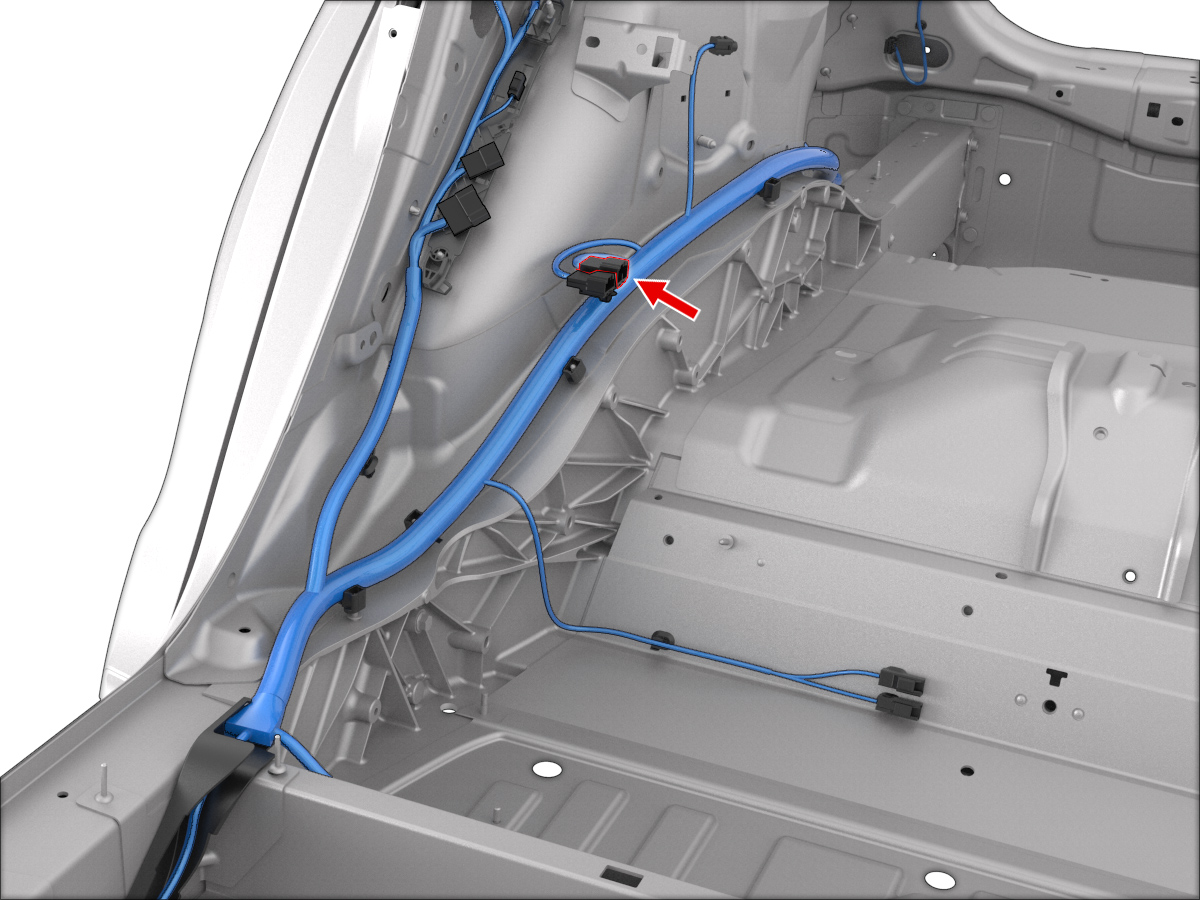

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8230-4925	1.5x0.6M	YE	0.50			X062	23
2	SUMITOMO	8230-4925	1.5x0.6M	GY	0.50			X062	22
3	SUMITOMO	8230-4925	1.5x0.6M	VT	0.50			X060A	32
4	SUMITOMO	8230-4925	1.5x0.6M	BK	0.50			G700	1
5	unused
6	unused
7	SUMITOMO	8230-4925	1.5x0.6M	WH	0.35			X060A	8
8	SUMITOMO	8100-3623	0.64x0.64M	GN	0.35			X060B	4
9	SUMITOMO	8100-3623	0.64x0.64M	BU	0.35			X060A	21
10	SUMITOMO	8100-3623	0.64x0.64M	BN	0.35
11	SUMITOMO	8100-3623	0.64x0.64M	BK	0.35			G700	1
12	unused
13	unused
14	SUMITOMO	8100-3623	0.64x0.64M	VT	0.35			X910F_1	10
15	SUMITOMO	8100-3623	0.64x0.64M	GY	0.35			X910F_1	9
16	SUMITOMO	8100-3623	0.64x0.64M	WH	0.35			X993M	7
17	SUMITOMO	8100-3623	0.64x0.64M	RD	0.35			X993M	6
18	unused
