X047 - s-lhd-dm-sop1

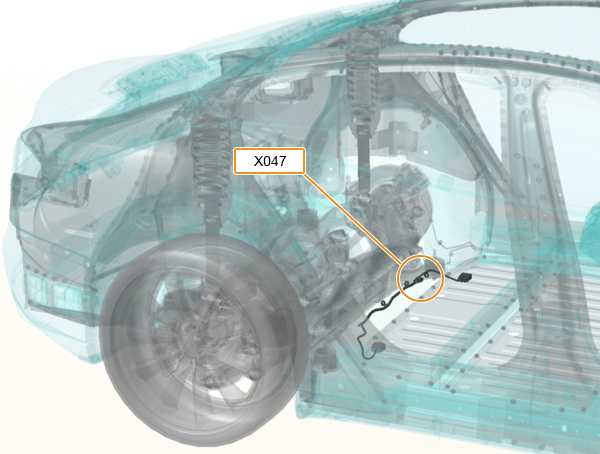

Location:
Connector Detail: amp_1-1534096-1
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 1 | DB | 0.5 |
| 2 | GY | 0.5 |
| 3 | OG | 0.5 |
| 4 | WH | 0.5 |
| 5 | TN | 0.5 |
| 6 | BN | 0.5 |
| 7 | RD | 0.5 |
| 9 | PK | 0.5 |
| 10 | VT | 0.5 |
| 11 | YE | 0.5 |
| 12 | DG | 0.5 |
