X058 - s-lhd-dm-sop1

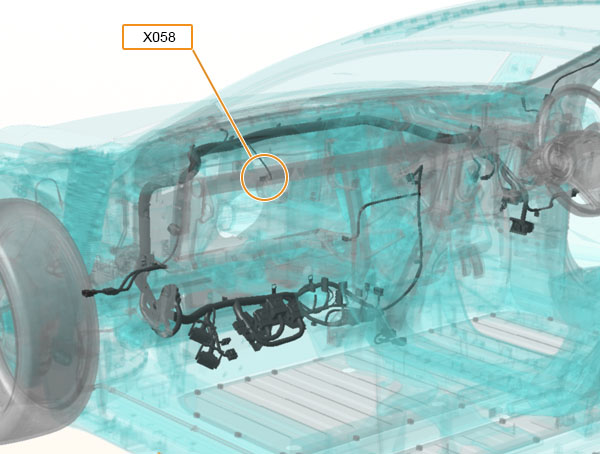

Location:
Connector Detail: yazaki_7123-1360
Gender: UNSPEC
Color: Natural
| Cav | Col | Gauge |
|---|---|---|
| 1 | BK | 0.5 |
| 2 | OG/VT | 0.5 |
| 3 | BN | 0.5 |
| 4 | BN | 0.5 |
| 5 | DG | 0.5 |
2012-2020 Model S Connector Reference
