X059 - s-lhd-dm-sop1

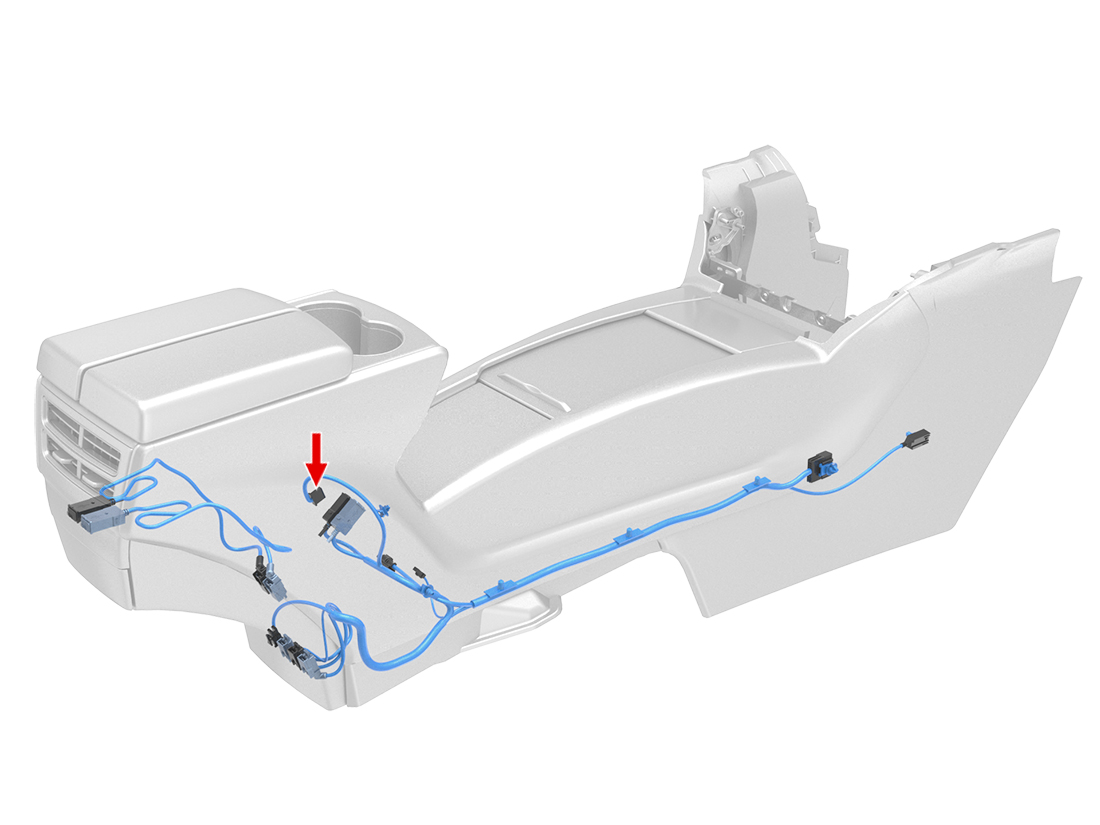

Location:
Connector Detail: ket_651439
Gender:
Color: WH
| Cav | Col | Gauge |
|---|---|---|
| 1 | RD/WH | 0.5 |
| 2 | BK/TN | 0.5 |
| 4 | PK/YE | 0.5 |
| 6 | OG/VT | 0.5 |
2012-2020 Model S Connector Reference
