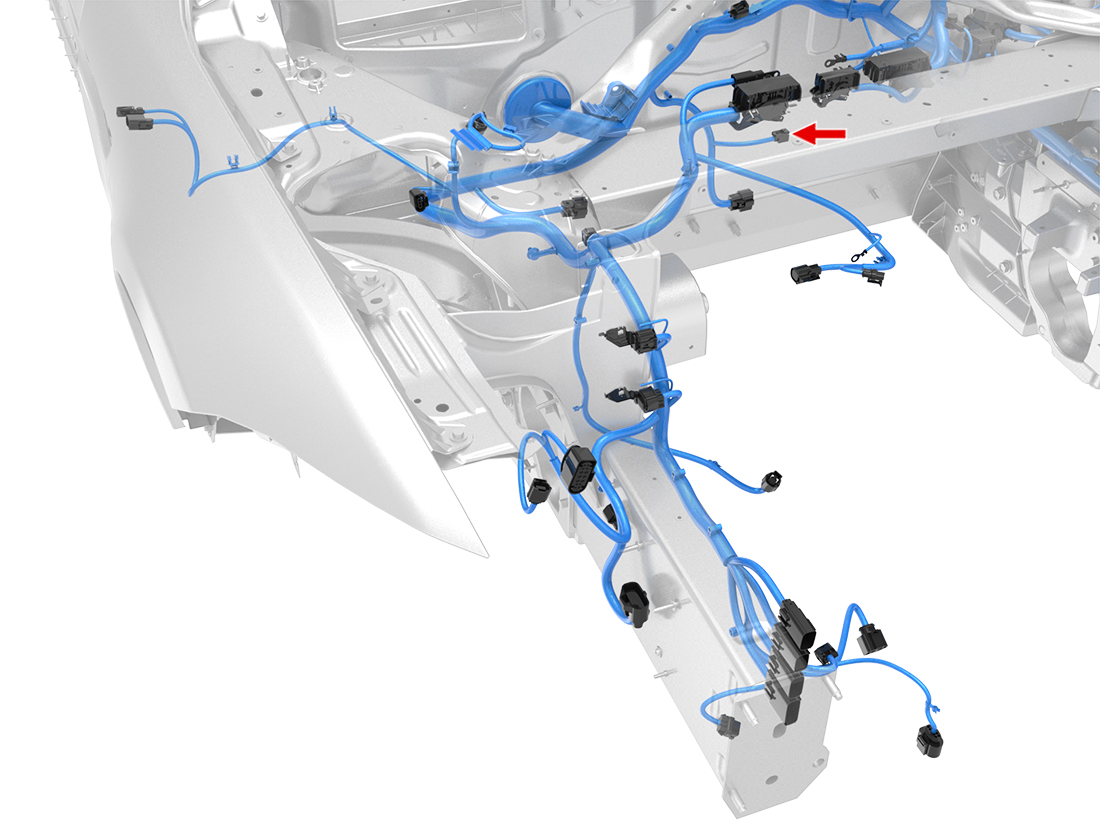

X066 - s-lhd-dm-sop1
Location:
Connector Detail: yazaki_7283-6078-30
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 1 | WH/DB | 0.35 |
| 2 | BK/GY | 0.35 |
