X071 - s-lhd-dm-sop1

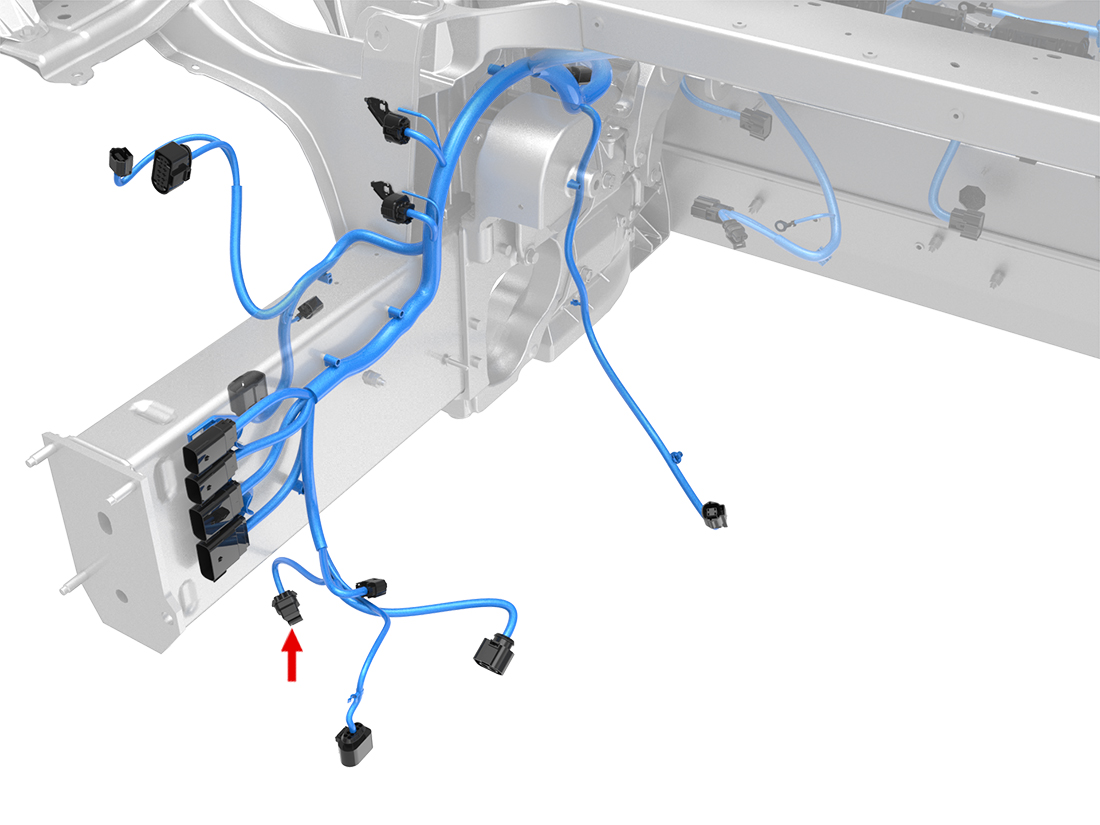

Location:
Connector Detail: delphi_12052848
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| A | RD/WH | 0.35 |
| C | BK | 0.35 |
| D | TN/BK | 0.35 |
| F | TN/DB | 0.35 |
2012-2020 Model S Connector Reference
