X118 - s-lhd-dm-sop1

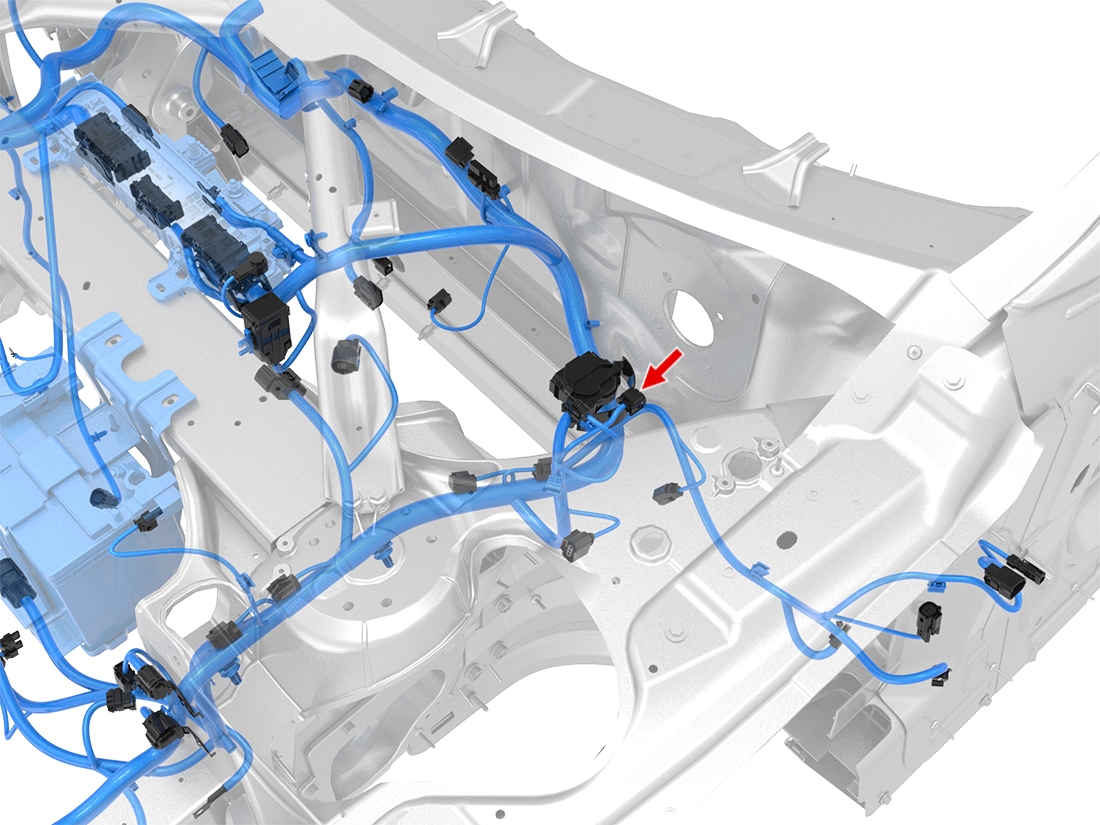

Location:
Connector Detail: amp_1-967640-1
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 1 | YE | 0.5 |
| 2 | BN | 0.5 |
| 3 | GY | 0.5 |
| 4 | RD | 0.5 |
2012-2020 Model S Connector Reference
