X121A - s-lhd-dm-sop1

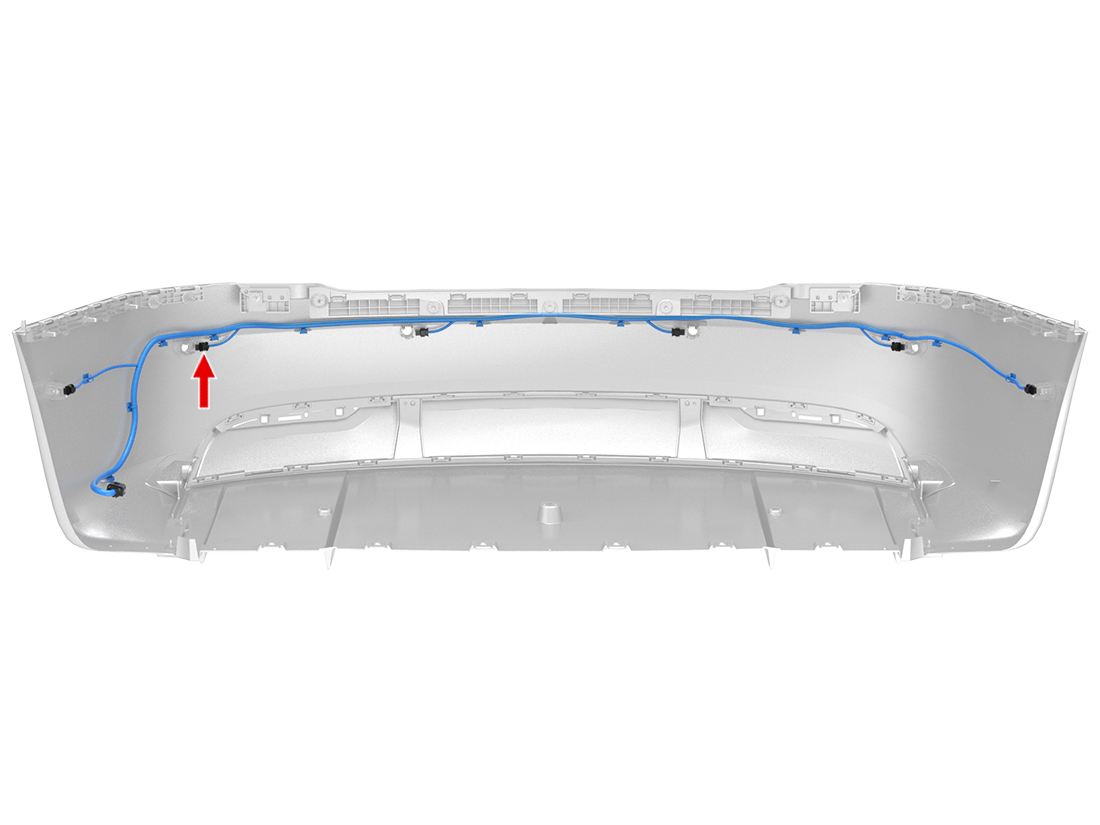

Location:
Connector Detail: hirschmann_872-858-542
Gender: UNSPEC
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 1 | WH/BN | 0.35 |
| 2 | WH/RD | 0.35 |
| 3 | WH/BK | 0.35 |
2012-2020 Model S Connector Reference
