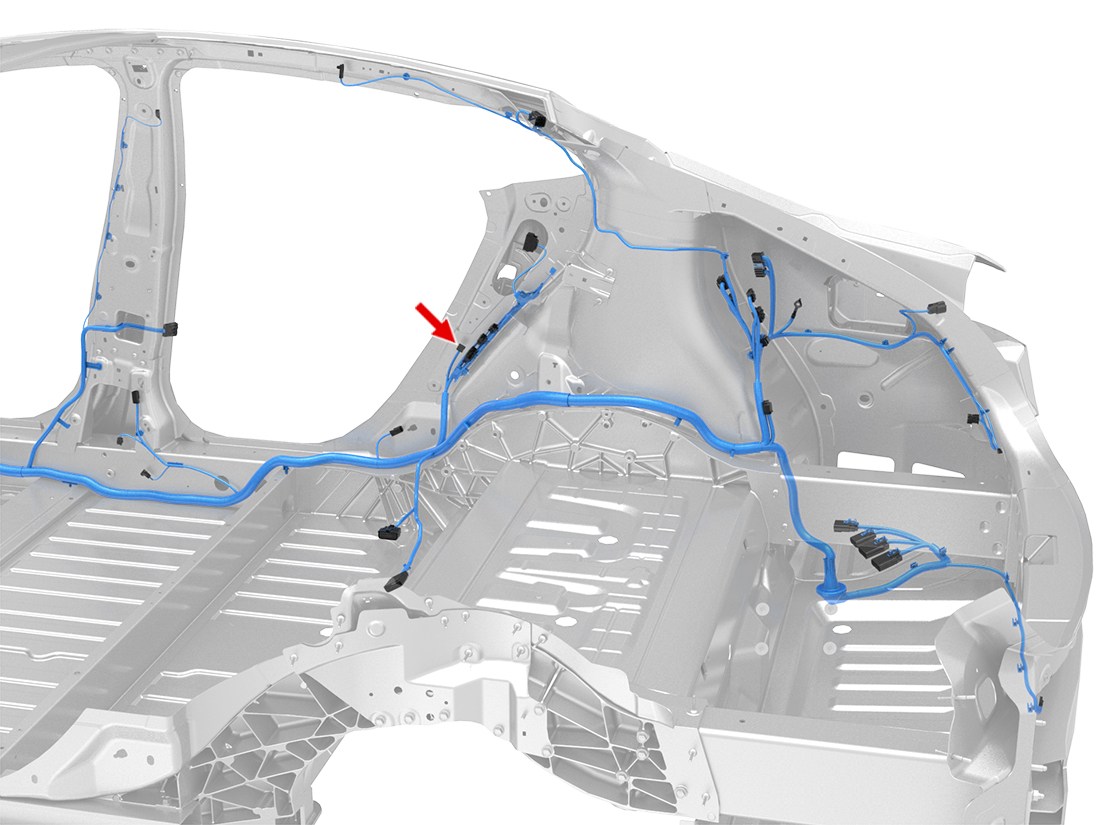

X141 - s-lhd-dm-sop1
Location:
Connector Detail: amp_2109233-2
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 1 | RD | 0.35 |
| 2 | PK/DG | 0.35 |
| 3 | WH/DG | 0.35 |
| 4 | DG | 0.35 |
| 5 | BK | 0.5 |
2012-2020 Model S Connector Reference
