X251 - s-lhd-dm-sop1

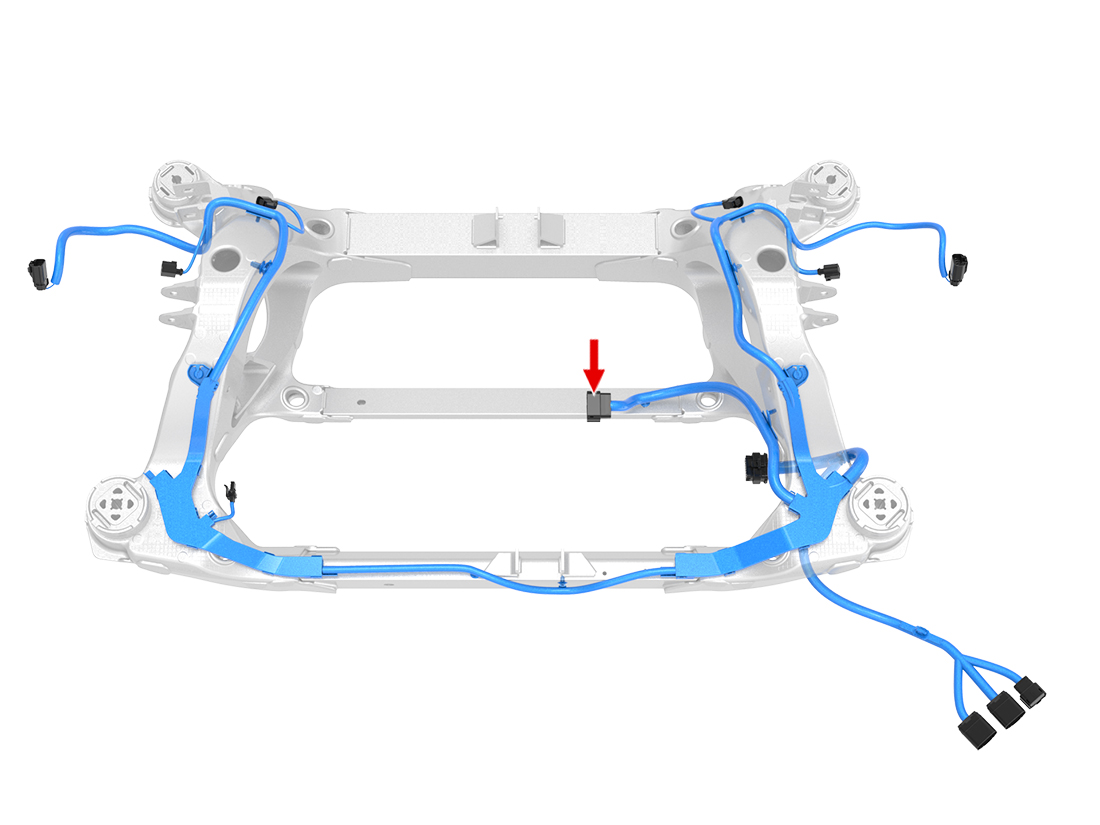

Location:
Connector Detail: molex_33472-2002
Gender:
Color: Gray
| Cav | Col | Gauge |
|---|---|---|
| 1 | RD | 0.5 |
| 2 | WH/RD | 0.5 |
| 3 | YE/BK | 0.5 |
| 4 | BN/OG | 0.5 |
| 5 | WH/LB | 0.5 |
| 6 | BN/YE | 0.5 |
| 7 | LG | 0.5 |
| 10 | BN | 1 |
| 11 | YE/BN | 0.5 |
| 12 | VT/LB | 0.5 |
| 13 | BN/GY | 0.5 |
| 14 | WH/BK | 0.5 |
| 17 | DG/VT | 0.5 |
| 18 | OG/VT | 0.5 |
| 19 | BK | 1 |
| 20 | WH/DG | 0.5 |
