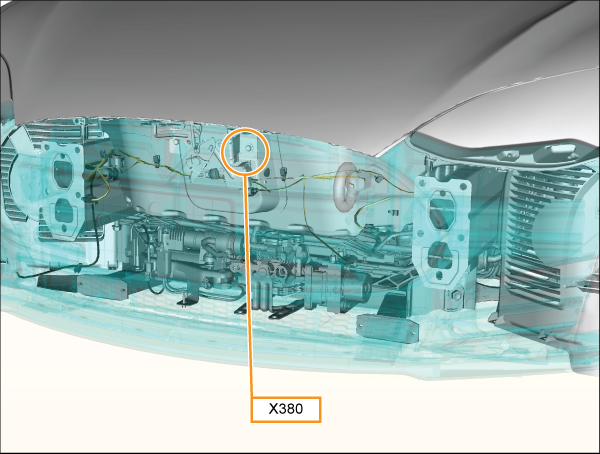

X380 - s-lhd-dm-sop1
Location:
Connector Detail: delphi_12045813
Gender:
Color: Cream
| Cav | Col | Gauge |
|---|---|---|
| A | RD | 0.5 |
| B | BK | 0.5 |
| D | WH | 0.5 |
2012-2020 Model S Connector Reference
