X391 - s-lhd-dm-sop1

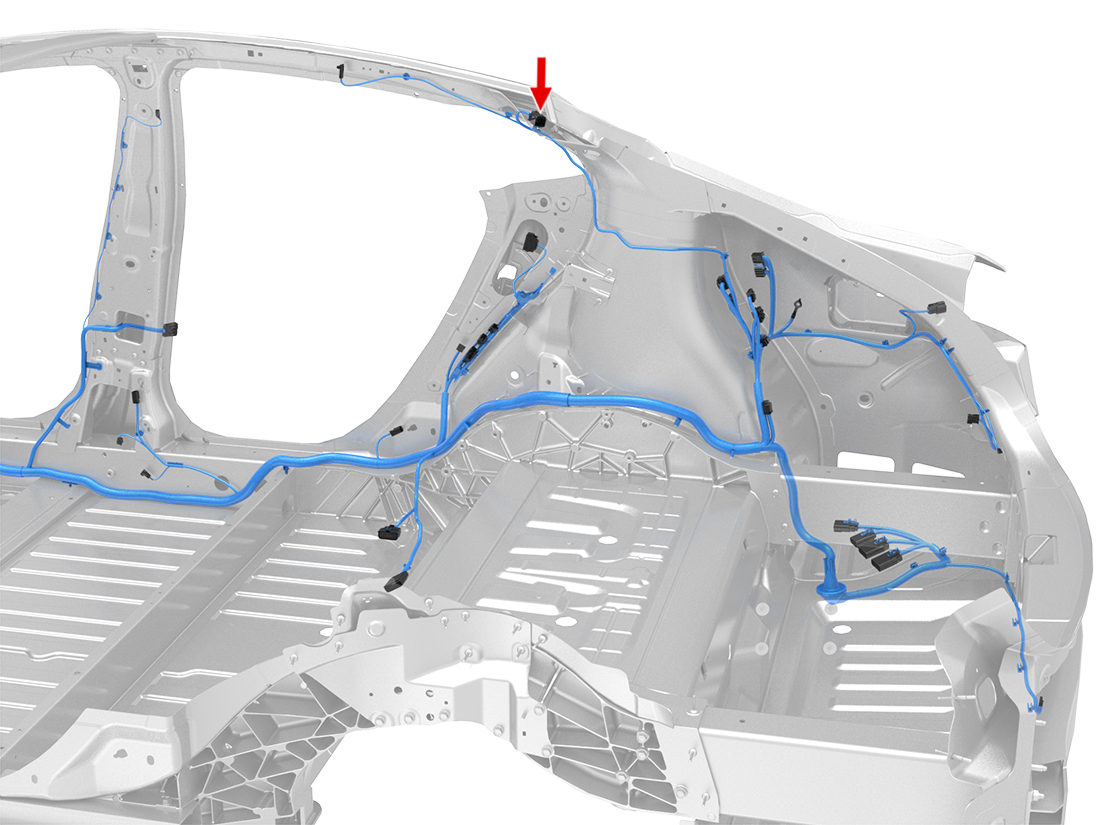

Location:
Connector Detail: yazaki_7282-6448-40
Gender:
Color: LightGray
| Cav | Col | Gauge |
|---|---|---|
| 1 | RD/WH | 2 |
| 2 | WH/OG | 0.35 |
| 3 | WH/VT | 0.35 |
| 4 | BK/WH | 2 |
| 5 | WH/DG | 0.35 |
| 6 | WH/DB | 0.35 |
