X393 - s-lhd-dm-sop1

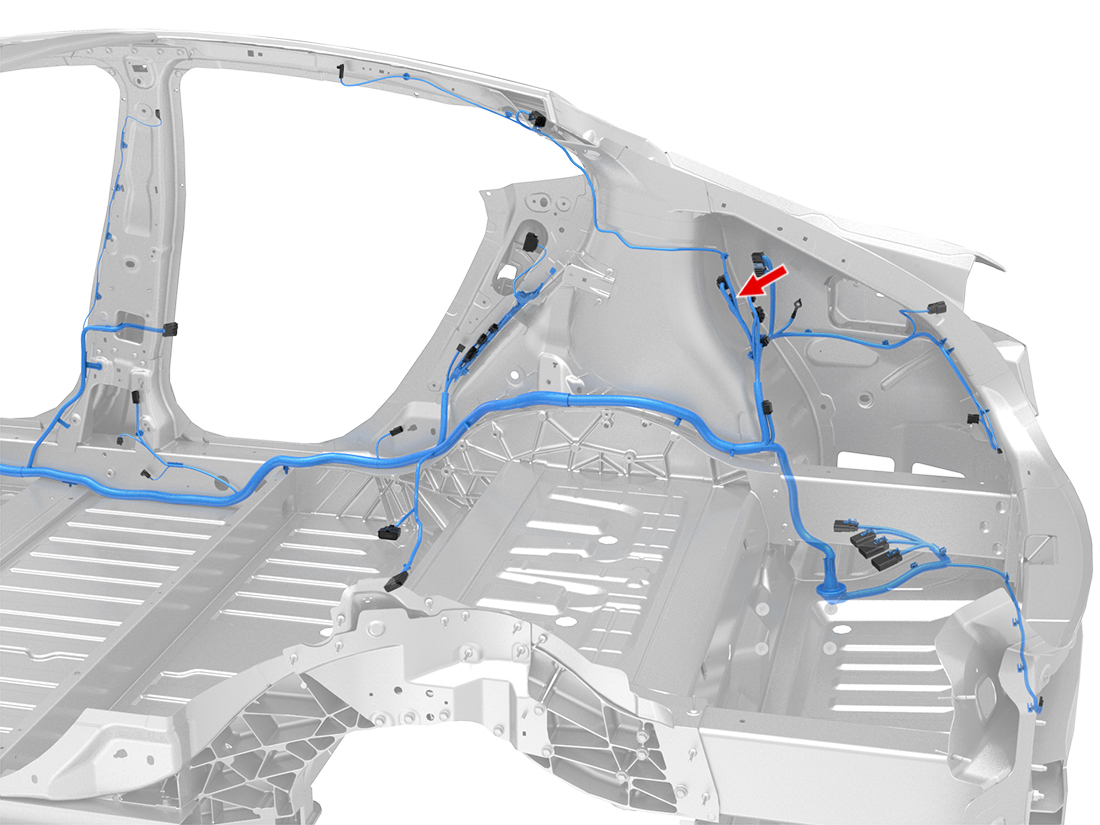

Location:

Connector Detail: jae_mx34020sf1

Gender:

Color: Gray

Cav	Col	Gauge
1	VT/WH	0.5
2	DB/LB	0.35
3	WH/BN	0.35
4	DG/VT	0.35
5	TN/DG	0.35
6	TN/BK	0.35
7	WH/DG	0.35
8	WH/DB	0.35
11	VT	0.5
13	TN	0.35
17	TN/DB	0.35
18	VT/GY	0.35
