X403 - s-lhd-dm-sop1

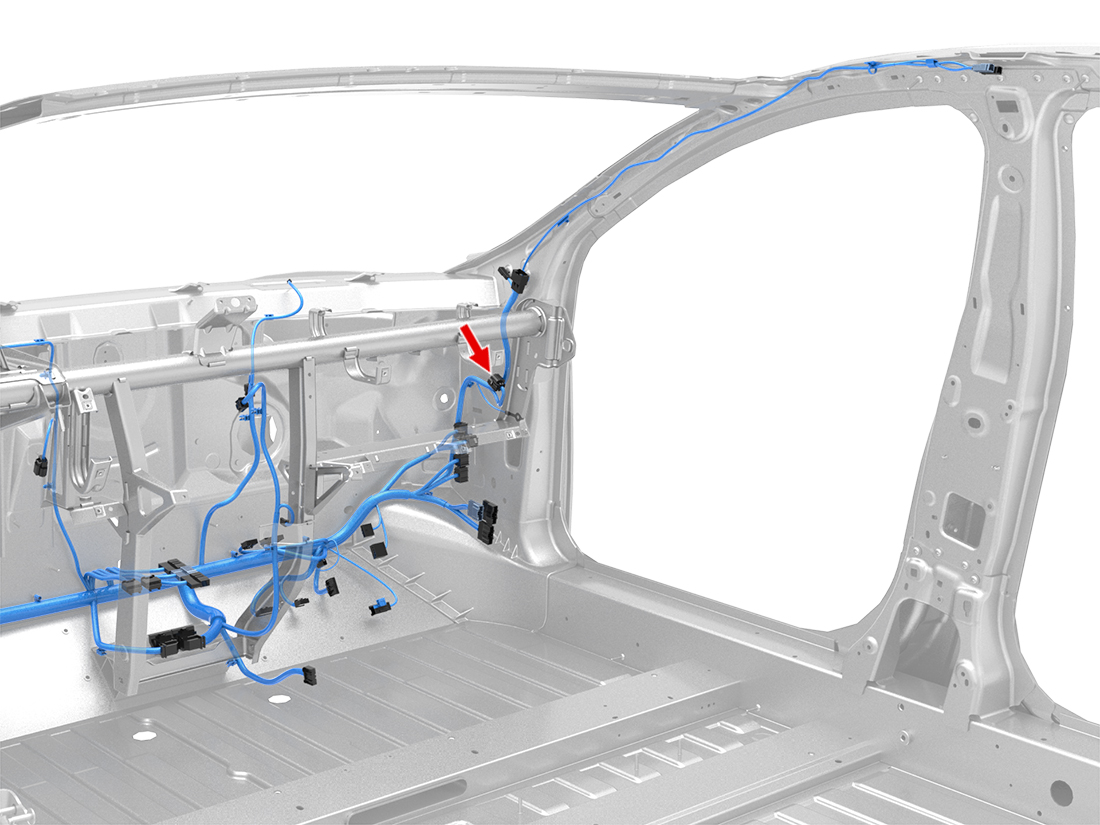

Location:
Connector Detail: sumitomo_6189-0133
Gender:
Color: LightGray
| Cav | Col | Gauge |
|---|---|---|
| 1 | BN | 0.5 |
| 2 | BK/GY | 0.5 |
| 3 | RD/GY | 1 |
| 4 | WH/DG | 0.35 |
| 5 | WH/OG | 0.35 |
| 6 | BK/GY | 1 |
2012-2020 Model S Connector Reference
