X417 - s-lhd-dm-sop1

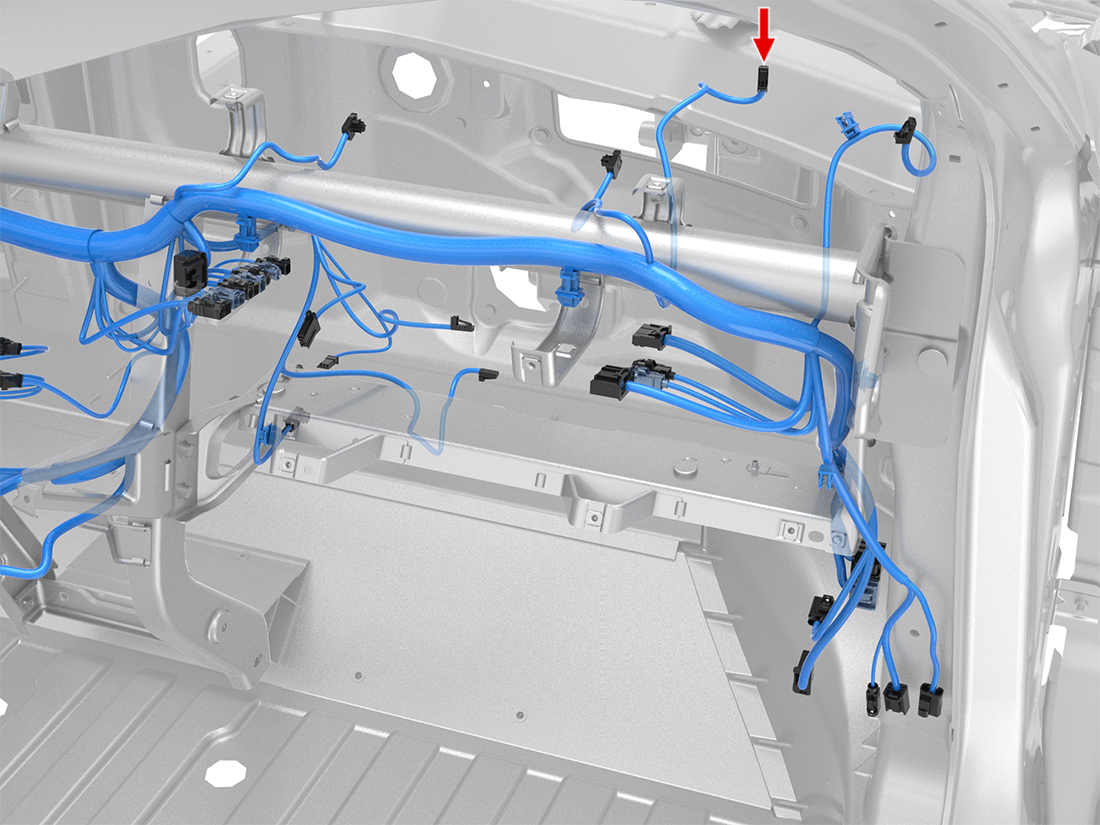

Location:
Connector Detail: amp_1-1534113-1
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 1 | OG | 0.75 |
| 2 | OGBK | 0.75 |
2012-2020 Model S Connector Reference
