X428 - s-lhd-dm-sop1

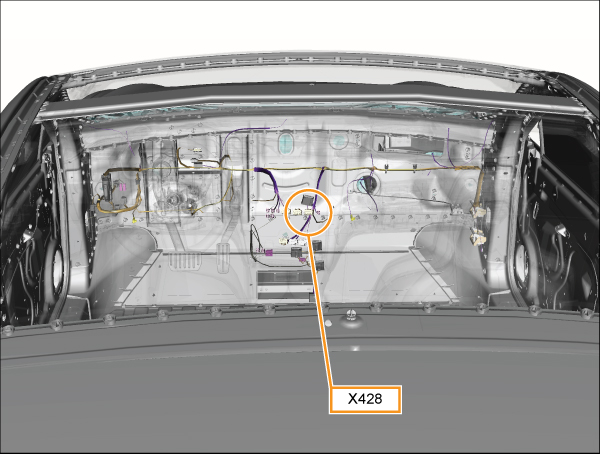

Location:
Connector Detail: molex_34729-0200
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 9 | LG | 0.5 |
| 10 | LG/OG | 0.5 |
| 19 | LG/VT | 0.5 |
| 20 | LG/BN | 0.5 |
