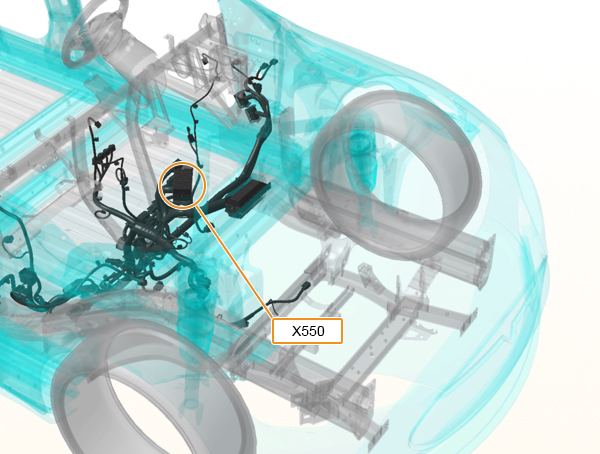

X550 - s-lhd-dm-sop1
Location:

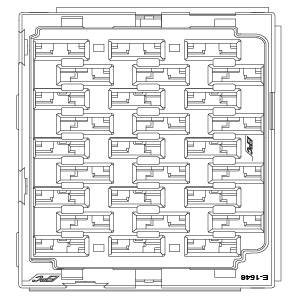

Connector Detail: aees_e1546
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| A8 | RD/WH | 5 |
| A9 | RD/WH | 5 |
| A13 | RD/BN | 5 |
| A17 | RD | 2 |
| A18 | RD/WH | 5 |
| A26 | RD/BN | 5 |
| A27 | YE/RD | 3 |
| B1 | WH/BK | 2 |
| B2 | YE/DG | 0.5 |
| B2 | YE/DG | 0.5 |
| B3 | VT | 1 |
| B4 | RD | 1 |
| B5 | YE/VT | 0.75 |
| B6 | PK/RD | 0.5 |
| B7 | RD/BK | 2 |
| B8 | RD/WH | 0.5 |
| B9 | YE/BN | 3 |
| B10 | YE/GY | 2 |
| B12 | RD/BK | 1 |
| B13 | OG/VT | 0.5 |
| B14 | YE/DB | 0.75 |
| B15 | RD/WH | 3 |
| B16 | RD/WH | 2 |
| B17 | OG/YE | 1 |
| B18 | YE/RD | 3 |
| B21 | WH/VT | 0.5 |
| B22 | OG | 0.75 |
| B23 | LB | 0.5 |
| B24 | OG/RD | 1 |
| B25 | BN | 1 |
| B26 | OG/BN | 1 |
| B27 | PK/BN | 0.5 |
