X551 - s-lhd-dm-sop1

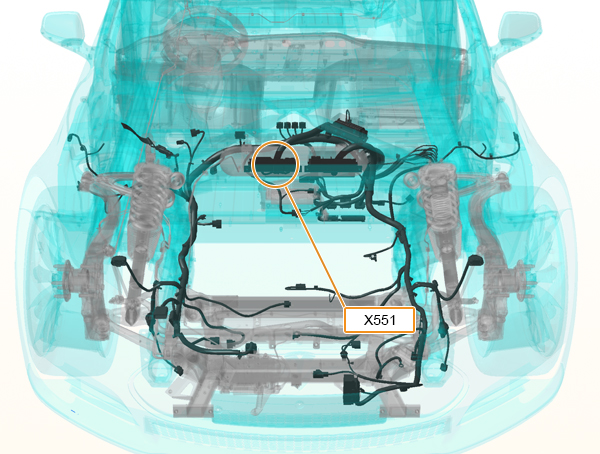

Location:

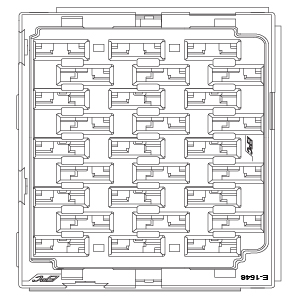

Connector Detail: aees_e1546
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| A2 | YE/GY | 3 |
| A4 | RD/YE | 2 |
| A8 | RD/WH | 2 |
| A9 | RD/DB | 5 |
| A17 | RD/DB | 5 |
| A18 | RD/BN | 5 |
| A26 | RD/BN | 5 |
| A27 | RD/GY | 5 |
| B1 | VT | 2 |
| B2 | RD | 0.75 |
| B3 | WH | 2 |
| B4 | LB | 0.75 |
| B5 | BN | 0.75 |
| B6 | RD/WH | 1 |
| B7 | DB | 0.5 |
| B8 | VT | 1 |
| B9 | RD/WH | 3 |
| B10 | DG | 2 |
| B11 | RD/GY | 0.5 |
| B12 | GY | 2 |
| B13 | LG/BN | 0.5 |
| B14 | LB/BK | 0.75 |
| B15 | RD/GY | 2 |
| B16 | PK | 0.5 |
| B17 | RD/BN | 0.75 |
| B18 | VT/BK | 2 |
| B19 | BU/WH | 2 |
| B20 | RD/BK | 0.5 |
| B21 | RD/BK | 1 |
| B22 | RD | 0.5 |
| B23 | TN/BK | 0.5 |
| B24 | RD/YE | 2 |
| B25 | BN/LB | 2 |
| B26 | RD/OG | 0.5 |
| B27 | DB/WH | 1 |
