X553 - s-lhd-dm-sop1

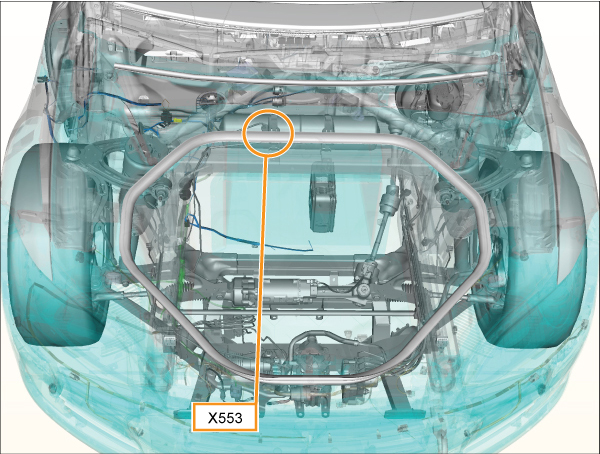

Location:

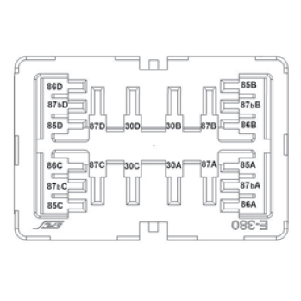

Connector Detail: aees_e380
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 85A | BK | 0.35 |
| 86A | RD | 0.35 |
| 30A | RD/WH | 2 |
| 87A | RD/YE | 2 |
| 85B | BK | 0.35 |
| 86B | DG | 0.35 |
| 30B | BN | 1 |
| 87B | DB/WH | 1 |
| 85C | BK | 0.35 |
| 86C | WH | 0.35 |
| 30C | BN/WH | 2 |
| 87C | BN/LB | 2 |
| 85D | BK | 0.35 |
| 86D | OG | 0.5 |
| 30D | RD | 2 |
| 87D | RD/WH | 2 |
