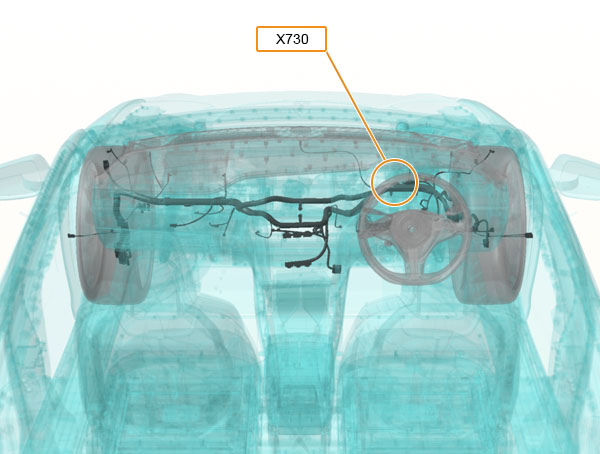

X730 - s-lhd-dm-sop1
Location:
Connector Detail: yazaki_7183-3190
Gender:
Color: White
| Cav | Col | Gauge |
|---|---|---|
| 1 | DG | 0.5 |
| 2 | DG | 0.35 |
| 3 | DG | 0.35 |
| 3 | DG | 0.35 |
| 4 | DG | 0.35 |
2012-2020 Model S Connector Reference
