X760 - s-lhd-dm-sop1

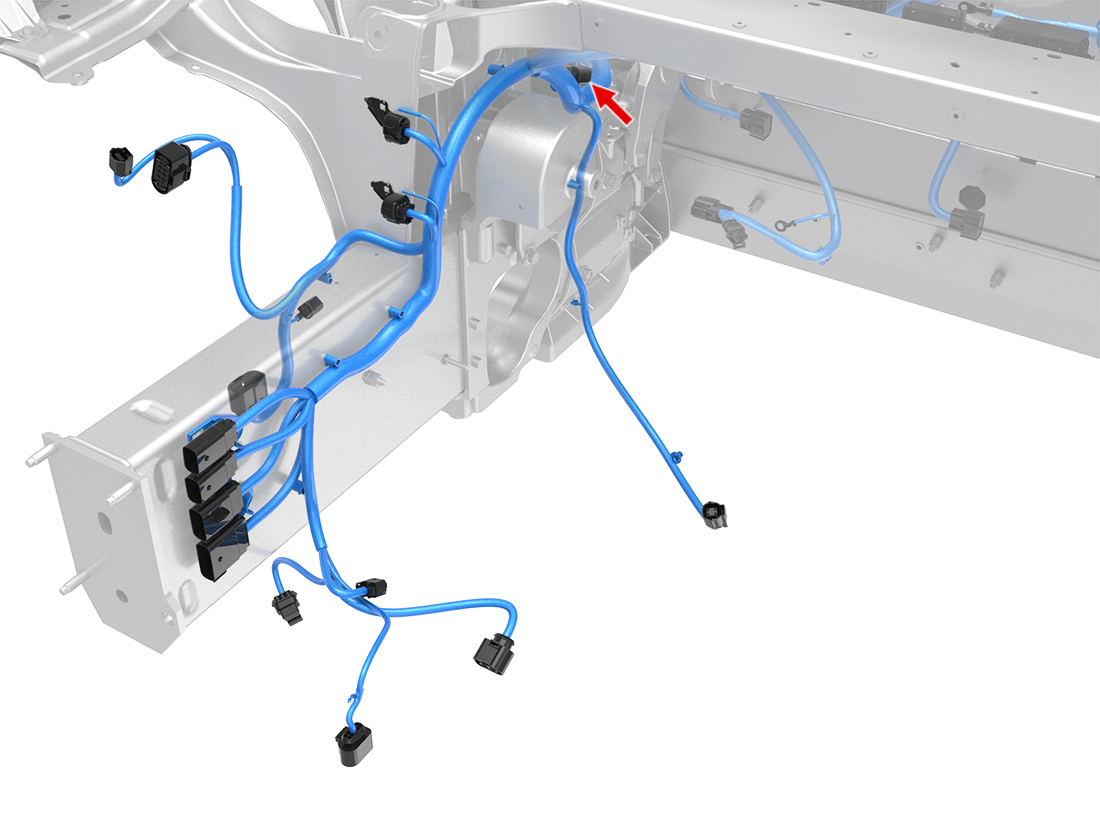

Location:
Connector Detail: yazaki_7283-2764-30
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 1 | RD | 0.5 |
| 2 | RD | 0.5 |
| 3 | RD | 0.5 |
| 4 | WH/RD | 0.5 |
| 5 | WH/RD | 0.5 |
| 6 | WH/RD | 0.5 |
