X805 - s-lhd-dm-sop1

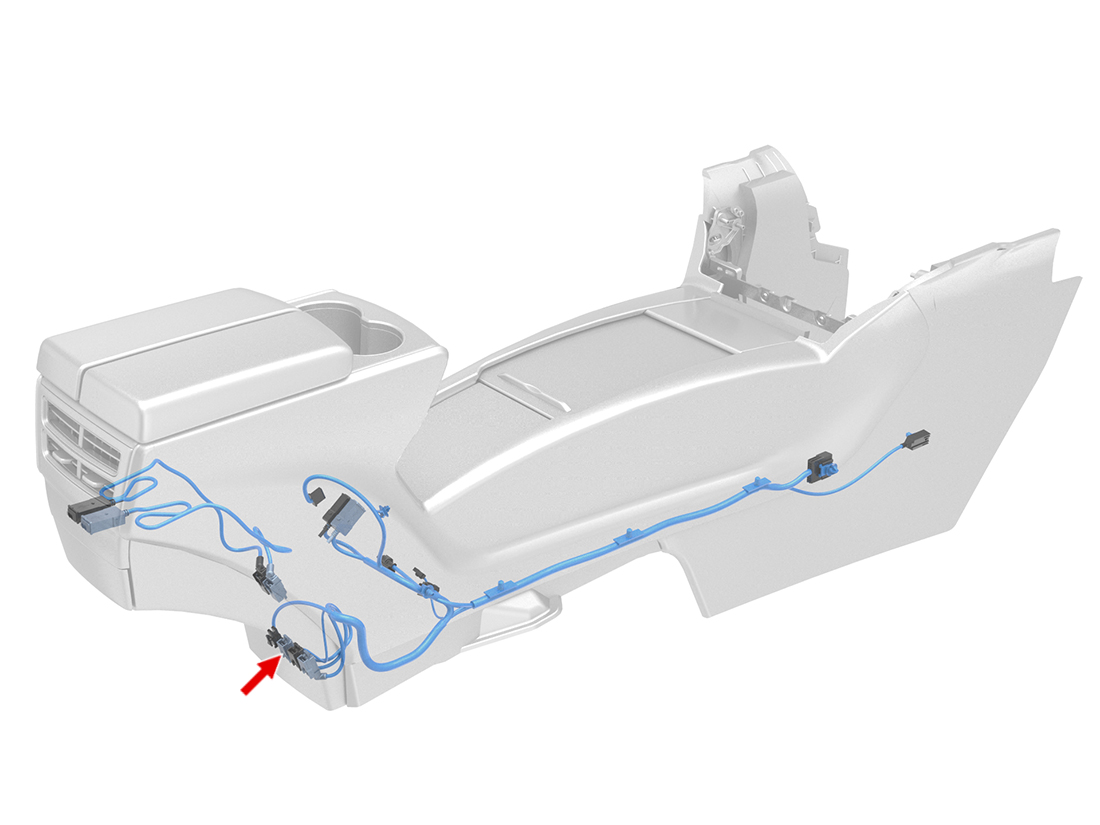

Location:

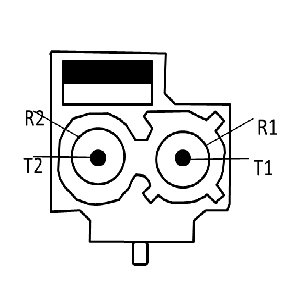

Connector Detail: amphenol_2fah-nbsj-c00-9
Gender:
Color: CremeWhite
| Cav | Col | Gauge |
|---|---|---|
| R1 | SH | 3.01 |
| R2 | SH | 3.01 |
