X901M - s-lhd-dm-sop1

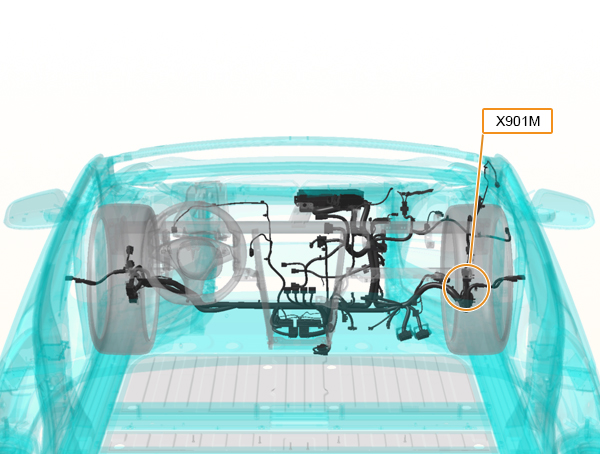

Location:

Connector Detail: yazaki_7282-4192-40

Gender:

Color: LightGray

Cav	Col	Gauge
1	RD/WH	1
2	BK/WH	1
3	YE/RD	3
4	BK	2
6	RD/GY	1
7	BK/GY	1
8	OG	0.5
10	WH/DB	0.5
11	RD/OG	0.5
12	VT/GY	0.35
13	GY	0.35
14	WH/BN	0.35
15	WH	0.35
16	PK/RD	0.35
17	WH/VT	0.35
19	LG/WH	0.5
20	BN	0.5
21	PK	0.5
22	RD/DB	0.5
23	LG/RD	0.5
24	BN/BK	0.5
25	RD/YE	0.5
26	DB/YE	0.5
27	WH/BK	0.5
28	LB	0.5
29	PK/BK	0.5
30	DG/BK	0.5
31	VT/BN	0.35
32	BK	1
33	PK	0.5
34	LB	0.5
35	WH/BK	0.5
36	TN	0.35
37	WH/BN	0.35
38	RD	0.5
38	RD	0.5
39	WH/RD	0.5
39	WH/RD	0.5
40	DG	0.35
41	GY/WH	0.5
43	BK	1
