X904F - s-lhd-dm-sop1

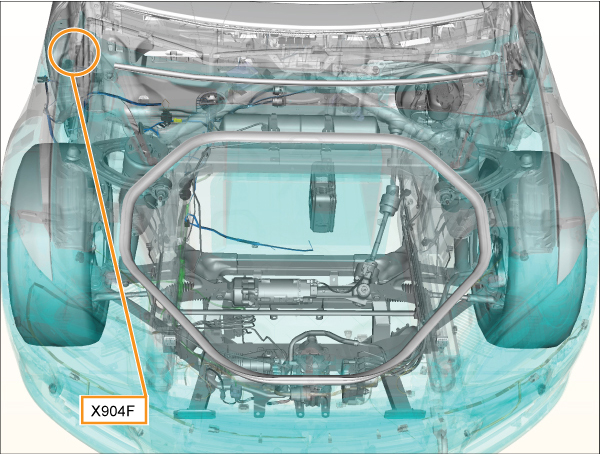

Location:
Connector Detail: amp_1318386-1
Gender:
Color: WH
| Cav | Col | Gauge |
|---|---|---|
| 1 | GY | 0.5 |
| 2 | DB/LB | 0.35 |
| 3 | VT | 0.5 |
| 4 | WH/BN | 0.35 |
| 5 | TN | 0.35 |
| 7 | VT/GY | 0.35 |
| 9 | WH/RD | 0.5 |
| 10 | WH/DB | 0.5 |
| 11 | OG | 0.35 |
| 12 | LG | 0.35 |
| 13 | BK | 0.35 |
| 14 | WH/GY | 0.5 |
| 14 | WH/GY | 0.5 |
| 15 | WH/BK | 0.5 |
| 15 | WH/BK | 0.5 |
| 16 | RD/WH | 0.35 |
