X905M - s-lhd-dm-sop1

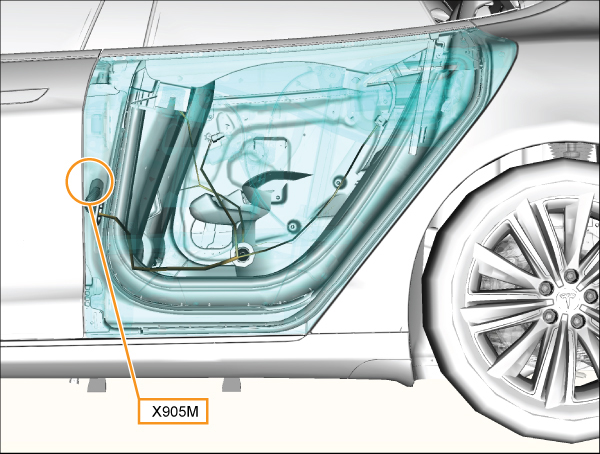

Location:
Connector Detail: amp_1376106-1
Gender:
Color: WH
| Cav | Col | Gauge |
|---|---|---|
| 1 | VT/GY | 0.35 |
| 2 | TN/DB | 0.35 |
| 3 | LG | 0.35 |
| 5 | DB/LB | 0.35 |
| 6 | TN/BK | 0.35 |
| 13 | LG/VT | 0.35 |
| 16 | DB/PK | 0.5 |
2012-2020 Model S Connector Reference
