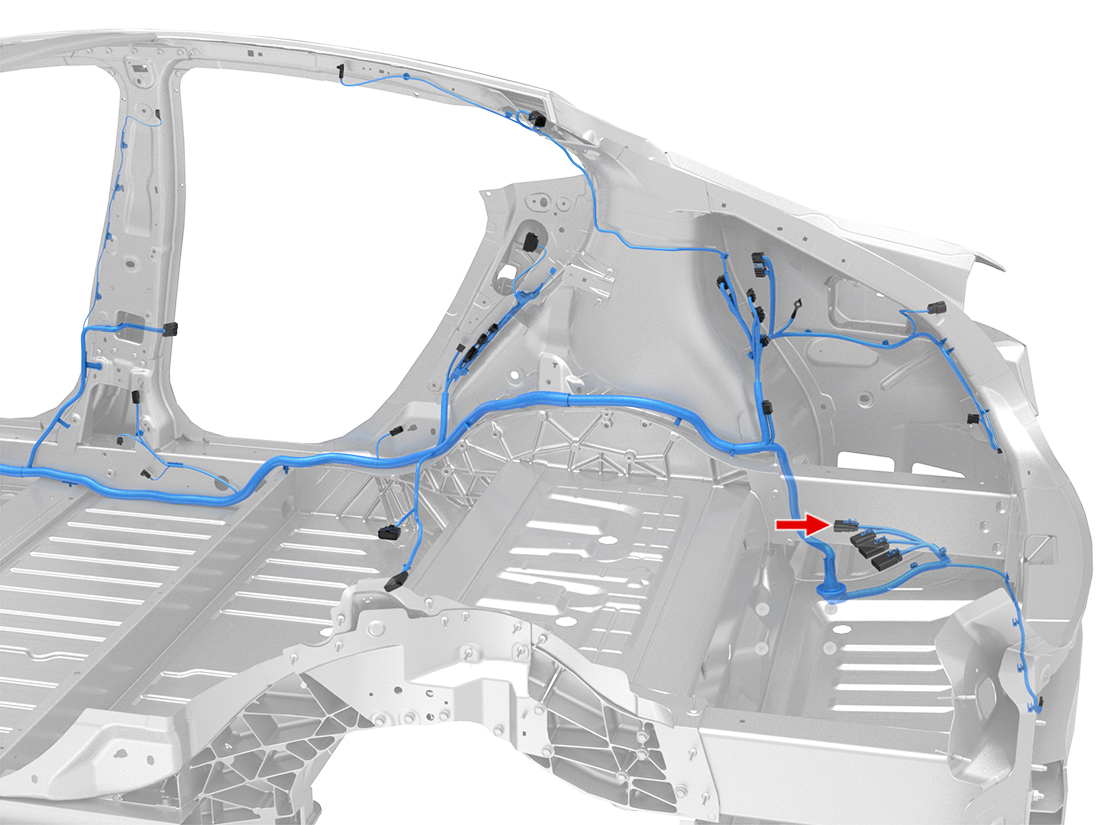

X909M - s-lhd-dm-sop1
Location:
Connector Detail: molex_33482-1201
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 1 | WH/VT | 0.5 |
| 2 | BK | 0.5 |
| 3 | YE/RD | 0.5 |
| 4 | YE/DG | 0.5 |
| 5 | WH/BN | 0.5 |
| 6 | WH/RD | 0.35 |
| 7 | OG/WH | 0.35 |
| 8 | WH/DG | 0.35 |
| 9 | WH/DB | 0.35 |
| 10 | WH/BK | 0.5 |
| 11 | DB | 0.35 |
| 12 | BN | 0.35 |
