X915M - s-lhd-dm-sop1

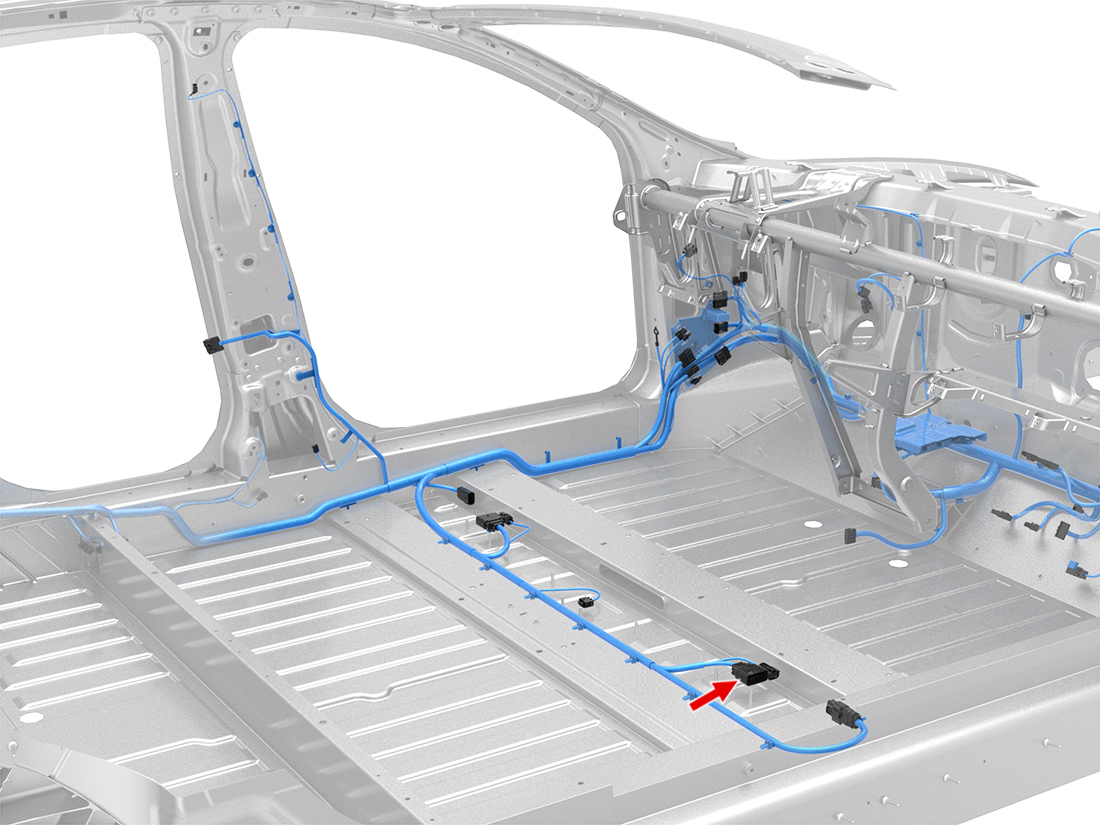

Location:
Connector Detail: amp_1-1718491-1
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 1 | LG/RD | 0.5 |
| 2 | LG/WH | 0.5 |
| 3 | PK | 0.5 |
| 6 | WH/DG | 0.35 |
| 7 | PK/BN | 0.5 |
| 9 | BK | 0.5 |
| 10 | DB/BN | 0.5 |
| 11 | BN | 0.5 |
| 12 | PK/DB | 0.5 |
| 15 | DG | 0.35 |
| 16 | BK | 0.5 |
| 18 | GY/WH | 0.5 |
| 19 | BN/LB | 2 |
| 20 | BK | 2 |
| 23 | YE/VT | 0.75 |
| 24 | BK | 0.75 |
| 25 | LG/VT | 0.5 |
