X917F - s-lhd-dm-sop1

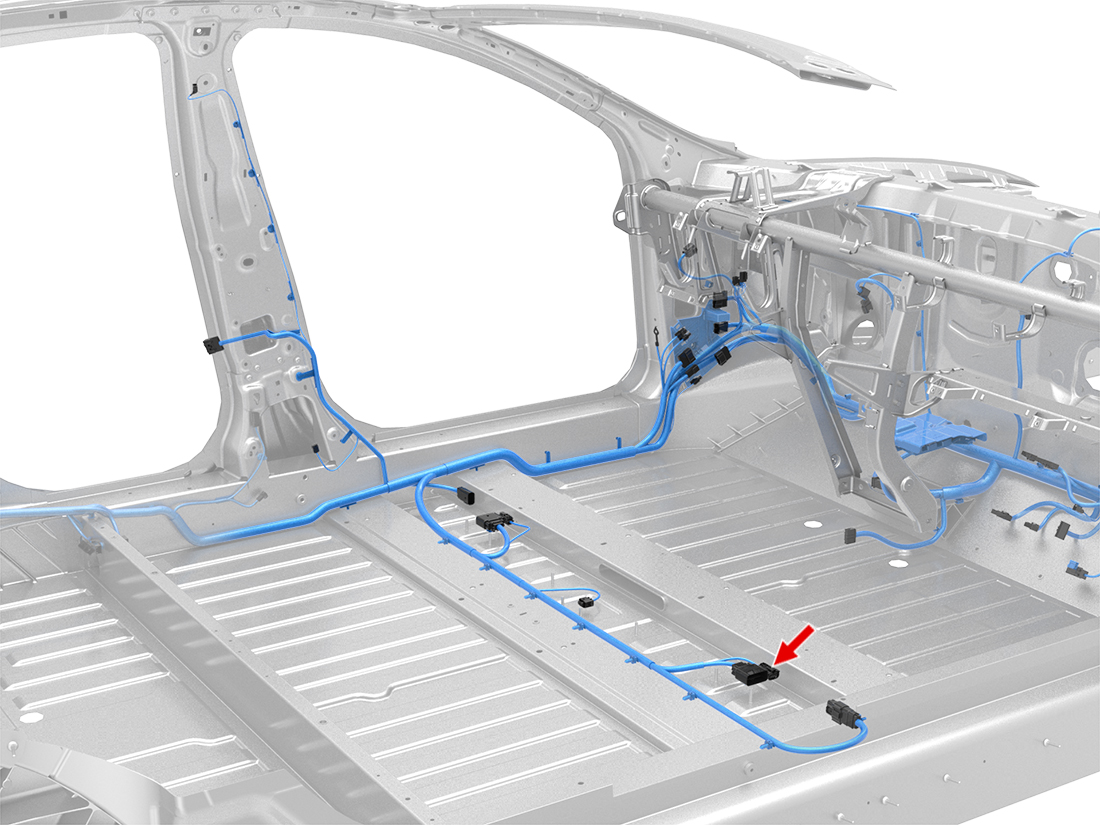

Location:
Connector Detail: jae_mx37004sp3
Gender:
Color: Yellow
| Cav | Col | Gauge |
|---|---|---|
| 1 | PK/BK | 0.5 |
| 2 | DG/BK | 0.5 |
| 3 | BK | 0.5 |
2012-2020 Model S Connector Reference
