X926M - s-lhd-dm-sop1

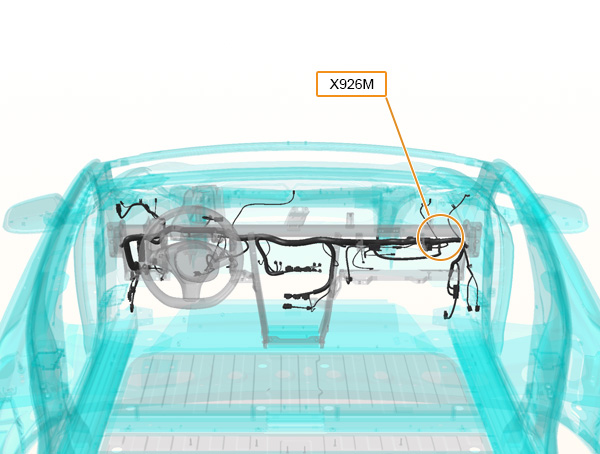

Location:
Connector Detail: yazaki_7282-3441-40
Gender: UNSPEC
Color: Gray
| Cav | Col | Gauge |
|---|---|---|
| 1 | LG/RD | 0.5 |
| 2 | TN/BK | 0.5 |
| 3 | RD/WH | 0.5 |
| 4 | DB/GY | 0.5 |
| 5 | RD | 0.5 |
| 6 | GY/YE | 0.5 |
2012-2020 Model S Connector Reference
