X942F - s-lhd-dm-sop1

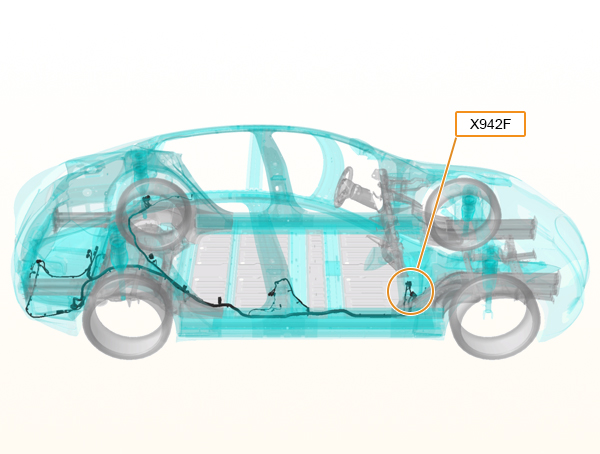

Location:
Connector Detail: amp_1318386-1
Gender:
Color: WH
| Cav | Col | Gauge |
|---|---|---|
| 1 | DB/LB | 0.35 |
| 2 | TN/BK | 0.35 |
| 6 | BN | 0.5 |
| 10 | LG | 0.35 |
| 11 | VT | 0.5 |
| 12 | TN/DB | 0.35 |
| 13 | WH | 0.35 |
2012-2020 Model S Connector Reference
