X950F - s-lhd-dm-sop1

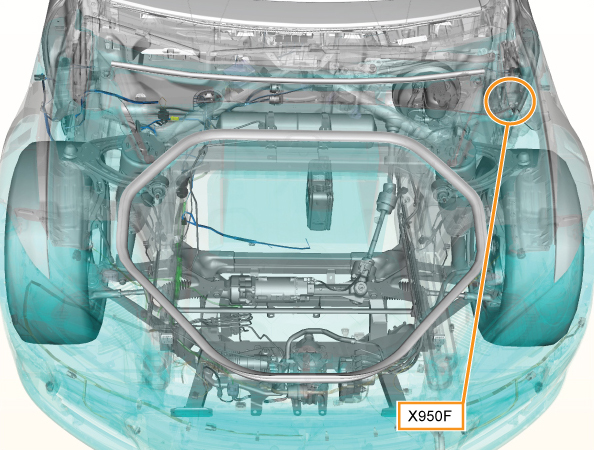

Location:

Connector Detail: yazaki_7283-4190-30

Gender:

Color: BK

Cav	Col	Gauge
1	VT	2
2	VT/BK	2
3	DG	2
4	RD/GY	0.75
5	RD/WH	2
6	VT	0.75
7	RD/OG	0.5
8	RD/BK	1
9	VT	1
10	RD/GY	0.5
11	VT/GY	0.35
12	GY	0.35
13	WH/BN	0.35
14	TN	0.35
15	RD	1
16	RD/WH	1
17	BK/WH	1
18	WH/BN	0.35
19	WH	0.35
20	WH/DB	0.5
21	RD/BK	0.5
22	RD/GY	1
23	BK/GY	1
24	PK/RD	0.35
25	WH/VT	0.35
26	PK/BK	0.35
27	GY/WH	0.5
28	YE/DB	0.5
29	YE/GY	0.5
30	GY/YE	0.35
31	BK/TN	0.35
32	YE/DB	0.75
33	RD	0.35
34	BK	0.35
35	SH	3.01
36	DG/VT	0.35
37	OG/LG	0.5
38	OG	0.35
39	DB/PK	0.5
40	WH/DG	0.35
41	DG	0.35
42	LG/VT	0.5
43	DB/PK	0.35
