X966M - s-lhd-dm-sop1

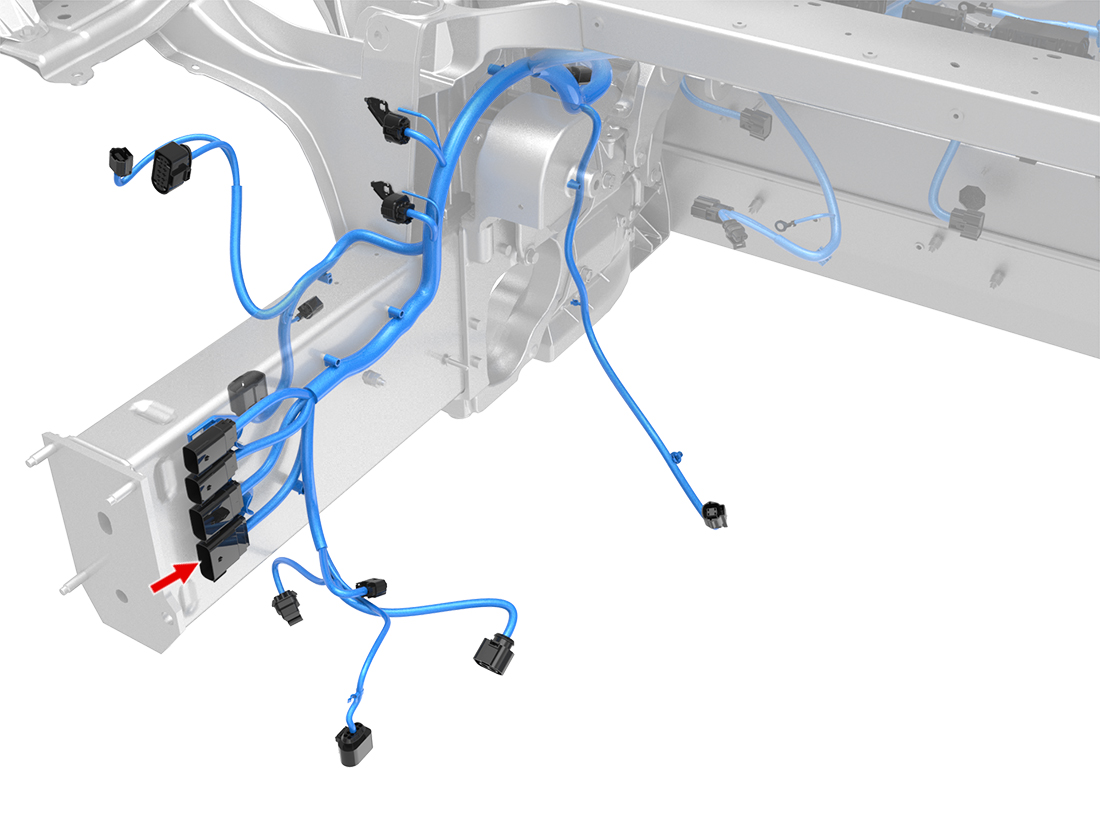

Location:
Connector Detail: molex_33482-2002
Gender:
Color: GY
| Cav | Col | Gauge |
|---|---|---|
| 1 | RD | 0.35 |
| 2 | OG | 0.5 |
| 3 | LG/WH | 0.5 |
| 4 | VT | 0.75 |
| 5 | BK | 0.75 |
| 6 | WH/BN | 0.35 |
| 7 | WH | 0.35 |
| 8 | GY/YE | 0.35 |
| 9 | RD/WH | 0.35 |
| 10 | BK/WH | 0.35 |
| 11 | OG/DG | 0.35 |
| 12 | BK/TN | 0.35 |
| 13 | LG | 0.35 |
| 14 | RD/GY | 0.75 |
| 15 | BK | 0.75 |
| 16 | LG/RD | 0.35 |
| 17 | PK/RD | 0.35 |
| 18 | LG/OG | 0.35 |
| 19 | RD/GY | 0.35 |
| 20 | BK/GY | 0.35 |
